Fitting timber pads to transom

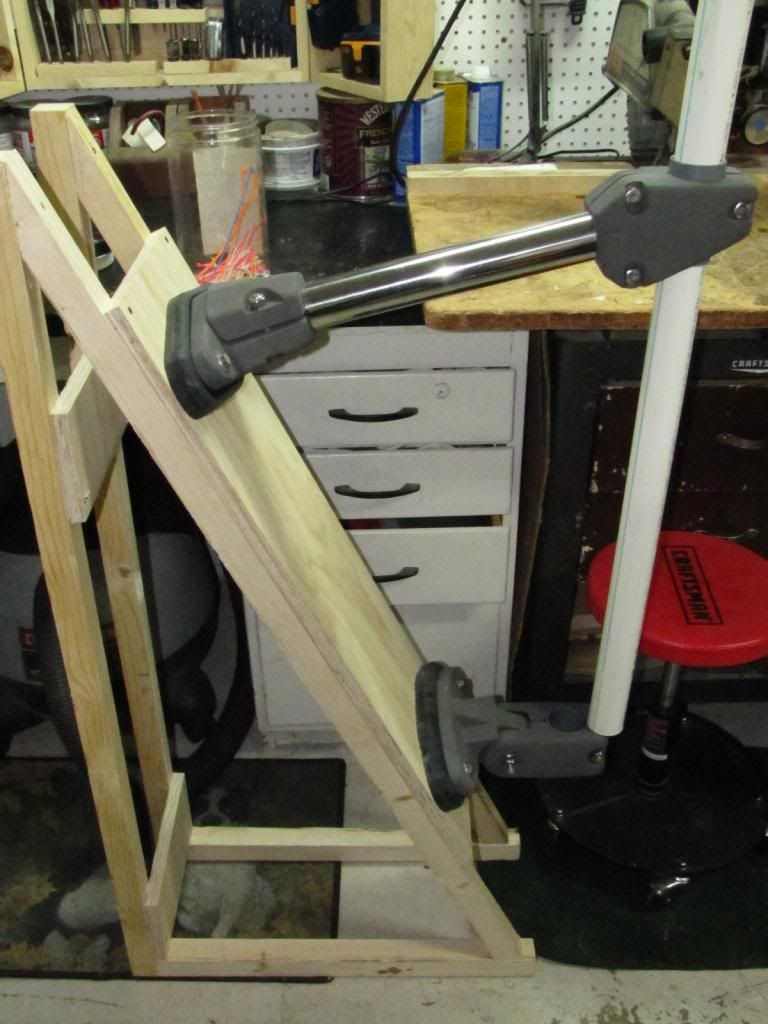

So Nikko is getting a windvane. I made a mock up of the transom to do some of the preliminary fitting at home. I'm using UHMW for the timber pads (spacer blocks) between the cast aluminum mounting pads and the transom. I have the preliminary angles worked out so the vane shaft will be vertical.

Now the hard part. I'll need to run the timber pads down to the boat and mark the transom curvature. I was figuring on running the pad over a a router bit on a router table and shave off a bit at a time to get the basic curvature and then using some sort of a grinder to get the final fit? Looking for better ideas on doing this if someone has already learned from their mistakes?

Ray
S.V. Nikko
1983 Fraser 41
La Conner, WA


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Boating for over 25 years, some of them successfully.
erps is offline
Quote Quick Reply Share with Facebook
Sponsored Links
Advertisement

post #2 of 9 Old 03-06-2014
Senior Member

Join Date: Sep 2011
Location: Massachusetts
Posts: 132
Thanks: 1
Thanked 0 Times in 0 Posts
Rep Power: 6

Fitting timber pads to transom

You could try steaming the wood to get the curve correct.

Schock - New York 36
Portsmouth, RI
mm2187 is offline
Quote Quick Reply Share with Facebook
post #3 of 9 Old 03-06-2014
Senior Member

Join Date: Oct 2011
Location: Nanaimo B.C.
Posts: 3,317
Thanks: 3
Thanked 90 Times in 89 Posts
Rep Power: 6

Re: Fitting timber pads to transom

Small angle angle grinder` and some eye/hand co-ordination.
Capt Len is online now
Quote Quick Reply Share with Facebook
post #4 of 9 Old 03-06-2014
69' Coronado 25

socal c25's Avatar

Join Date: Nov 2013
Location: So. Cal.
Posts: 321
Thanks: 4
Thanked 14 Times in 14 Posts
Rep Power: 4

Dock
Re: Fitting timber pads to transom

Use a cabinet makers template to duplicate the curvature.

"There're those that stand at the shore looking to the sea, wondering, and there're those standing at the helm looking back at the shore, knowing." - Kurt Leisenfelder

"Fiberglass shells that let us breathe, let us smell, keep us from going numb"- Kurt Leisenfelder

My Avatar is a pic of my son - Jan 19, 2014.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
socal c25 is offline
Quote Quick Reply Share with Facebook
post #5 of 9 Old 03-06-2014 Thread Starter
the pointy end is the bow

erps's Avatar

Join Date: Aug 2006
Location: La Conner, Washington
Posts: 6,264
Thanks: 2
Thanked 27 Times in 26 Posts
Rep Power: 12

Re: Fitting timber pads to transom

Quote:
Use a cabinet makers template to duplicate the curvature.
Oh! A new tool to google. I've had decent luck using the appropriately sized fender washer with a pencil in the middle and then just rolling it along the surface to be copied but I'll check out this template tool. Thanks.

Ray
S.V. Nikko
1983 Fraser 41
La Conner, WA


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Boating for over 25 years, some of them successfully.
erps is offline
Quote Quick Reply Share with Facebook
post #6 of 9 Old 03-06-2014
69' Coronado 25

socal c25's Avatar

Join Date: Nov 2013
Location: So. Cal.
Posts: 321
Thanks: 4
Thanked 14 Times in 14 Posts
Rep Power: 4

Dock
Re: Fitting timber pads to transom

check this out
https://www.google.com/url?sa=i&rct=...94250543022287

"There're those that stand at the shore looking to the sea, wondering, and there're those standing at the helm looking back at the shore, knowing." - Kurt Leisenfelder

"Fiberglass shells that let us breathe, let us smell, keep us from going numb"- Kurt Leisenfelder

My Avatar is a pic of my son - Jan 19, 2014.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
socal c25 is offline
Quote Quick Reply Share with Facebook
post #7 of 9 Old 03-06-2014 Thread Starter
the pointy end is the bow

erps's Avatar

Join Date: Aug 2006
Location: La Conner, Washington
Posts: 6,264
Thanks: 2
Thanked 27 Times in 26 Posts
Rep Power: 12

Re: Fitting timber pads to transom

I was actually looking at one of those at Home Depot last month. It was reasonably priced too, I think it was under $15.

Ray
S.V. Nikko
1983 Fraser 41
La Conner, WA


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Boating for over 25 years, some of them successfully.
erps is offline
Quote Quick Reply Share with Facebook
post #8 of 9 Old 03-07-2014
Senior Member

Join Date: Jul 2013
Location: Miami Florida
Posts: 140
Thanks: 0
Thanked 10 Times in 9 Posts
Rep Power: 4

Re: Fitting timber pads to transom

You already know the first trick I was going to suggest, the disc with a pencil through it.
The other thing I've done to get wood flush to a slightly curved surface is to put coarse sandpaper on the surface and rub the block of wood over it.
hopcar is offline
Quote Quick Reply Share with Facebook
post #9 of 9 Old 03-07-2014
Senior Member

Join Date: Sep 2013
Location: nelson new zealand
Posts: 147
Thanks: 0
Thanked 4 Times in 4 Posts
Rep Power: 4

Re: Fitting timber pads to transom

scribe curve with a pencil and take out excess wood with the front of a belt sander just watch you fingers and loose clothing
