Wiring my boat for cable TV

Last weekend I installed a flat screen TV in the saloon of my sailboat so that my girlfriend can have something to watch while she is bored on the boat. There isnt cable wired through the boat so I am going to have to do it myself.

My marina has cable hookups beside the shorepower hookups. I was wondering if there was a special cable or anything like that that I need in order to get it working.

Also, how should I connect it to my boat. Do they make some sort of plug-in to go on my boat simular to a shore power hookup?
__________________
Small is beautiful, simple, cheap, and easy......

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Sailing Videos, Woodworking Videos and More!
Reply With Quote Share with Facebook
  #2
Old 03-23-2008
Senior Member

Join Date: Aug 2006
Location: Arlington, VA
Posts: 1,807
Thanks: 0
Thanked 4 Times in 4 Posts
Rep Power: 9
btrayfors will become famous soon enough btrayfors will become famous soon enough
Had the same problem a few years ago.

You can find what you need at the local Radio Shack, or online. Here's a sample of a very good quality cable with the connectors on each end: Belden #9104 75 Ohm CATV Cable 100' TNC Connectors - eBay (item 200207361675 end time Apr-11-08 10:59:17 PDT)

You probably won't need 100' of cable, depending on the distance to your shore connection.

You'll want to purchase or make up two cables: one for reaching from the cockpit to the dock, and one for running underdecks to the salon.

I installed a CATV receptacle in the cockpit, and ran the cable below decks all the way to the salon.

To keep rain/spray out when not in use, I installed a 90-degree fitting on the receptacle in the cockpit, pointing down.

Works like a charm!

Bill
Reply With Quote Share with Facebook
  #3
Old 03-23-2008
Junior Member

Join Date: Mar 2006
Location: Dayton, TN
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
dflyin1 is on a distinguished road
I am a cable guy in Tennessee. You shouldn't need anything you can't find at radioshack. As long as you get the barrel connectors tight you shouldn't get any water in the cable line. Just don't get them much over finger tight. Thats bad too. One thing I am considering so that I don't have to rewire my boat is this. Now mind you I haven't tried it yet but will soon.

I am rerunning my vhf with RG6 which is the current in house standard wiring.
The vhf wiring I have currently is rg58 which is similar in nature to what was used 15 yrs ago in houses. what I did was buy Rg6 to Rg58 connectors for a buck or so each. In your case you could potentially piggy back off of your vhf antennae wire simply by cutting the line at your nav station replacing it with a standard cable end Try to get one from a cable guy or get the good ones at lowes.(no twist ons). Place the RG6 end connector on the other end going to the vhf and you will be able to swap between cable and vhf when not in port.

Now for the outside, somewhere near the mast should be a coupling going from cabin to mast. Cut the end off of it and replace it with rg6 to Rg58 coupler and you should be done. Then all you have to do is when coming into port undo coupling and replace with cable line going to shore. One other benefit I can see is that you could potentially use your vhf antenna as a tv antennae when cable is not available.
Reply With Quote Share with Facebook
  #4
Old 03-23-2008
sifucarl's Avatar
Member

Join Date: Jan 2008
Location: Lansing, MI
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 7
sifucarl is on a distinguished road
Send a message via Yahoo to sifucarl
Dfly has good info. I used to install Dish Network systems. If I had the opportunity I'd replace all the cable to ensure there are as few connections as possible. A large part of the problems we encountered were water intrusion issues, I can definitely see this on a sailboat. Additionally, I'd opt to use a compression style connector vice a crimp style, they are better resistant to water intrusion. Hell for a few pennies more you can get compression fittings with rubber o-rings.

Here's a quick how to. How Do I...Install Coax Connectors - HomeTech Solutions

If you do replace all cable, go with all RG-6, costs a bit more but it can handle higher frequencies than RG-58 cable. If you ever decide to get satellite service you won't have to worry about it.

Too bad I'm not down south or I'd come out and help out.
Reply With Quote Share with Facebook
  #5
Old 03-23-2008
sailingdog's Avatar
Telstar 28

Join Date: Mar 2006
Location: New England
Posts: 43,291
Thanks: 0
Thanked 9 Times in 9 Posts
Rep Power: 13
sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice

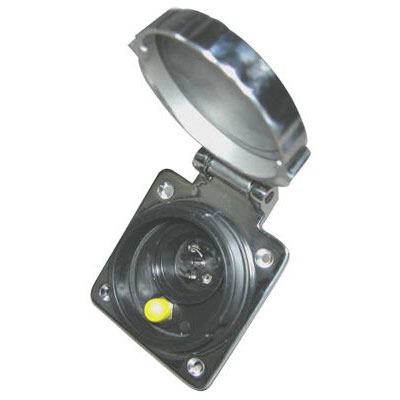

Since you're setting this up for a relatively permanent installation, you should probably install an external cable-tv inlet, like the shore power inlet on the boat.



I would use marine-grade coax cable and compression fittings, which are fairly easy to install.

Also, I'd recommend installing an coax outlet in the boat, rather than just running it to the back of the TV, since, that will make replacing the connection between the boat and the TV much easier to maintain. The cable attached to the TV may get damaged and such... and if you ran it directly into the TV, you'd have to re-run the cable more likely than not in the case of damage.

I would highly recommend people not do what DFLYIN1 has suggested. Having couplers in the VHF antenna line will attenuate and weaken your VHF radio's signal. IMHO, the VHF is an important piece of SAFETY GEAR, and shouldn't be tampered with just for entertainment purposes. Also, IIRC, the VHF antenna is tuned for the wrong frequency range for ATSC over-the-air HDTV signals.
__________________
Sailingdog

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Telstar 28
New England

You know what the first rule of sailing is? ...Love. You can learn all the math in the 'verse, but you take
a boat to the sea you don't love, she'll shake you off just as sure as the turning of the worlds. Love keeps
her going when she oughta fall down, tells you she's hurting 'fore she keens. Makes her a home.

—Cpt. Mal Reynolds, Serenity (edited)

If you're new to the Sailnet Forums... please read this
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
.

Still—DON'T READ THAT POST AGAIN.
Reply With Quote Share with Facebook
  #6
Old 03-23-2008
teshannon's Avatar
Senior Member

Join Date: Aug 2006
Location: Philadelphia
Posts: 2,713
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 10
teshannon has a spectacular aura about teshannon has a spectacular aura about teshannon has a spectacular aura about
I installed the fitting that SD shows above. Much better that running a cable through a porthole or other opening, particularly when it rains. I use a marine grade cable from the dock to the fitting and a Radio Shack cable permanently connected from the back of the fitting to the tv.
Reply With Quote Share with Facebook
