Installing a Automatic Battery Selector Switch

14K views 24 replies 6 participants last post by  artbyjody
#1 ·
If there was one gripe I did have when I finally started using my new Barberis, was that there was no easy access to the battery switch. It was under the nav table and impossible to see which mode it was selected to without getting on my hands and knees and hoping I do not bang my head on the table after I was done.

So, it was obvious to me that the first item in the electrical upgrade process would be a new switch. Blue Sea Systems sells a battery switch that is three positions but includes a automatic combiner / surge suppressor. The automatic part means that one doesn't have to switch to "combined" mode on the selector if the starter battery is low - it automatically switches over house banks to the starting circuits.



Installation is not difficult but can be a challenge for someone not quite sure where or what the wires currently on their Guest or Perko battery switches are. So, I figured I would share my tips on how I tackled the problem.

1. Turn off all power on both AC / DC side. This means pull out your shore power cable, and if possible disconnect leads from your batteries.

2. Undo the holding screws for your current switch so that you can pull out the original to actually handle it. Do not start disconnecting the cables on the back.

3. Your switch most likely will have three terminals on the back. You will want to label each wire with the position number that corresponds to the terminal / switch position. In this document I label the "off" terminal as #0, swith position #1 as #1, and the third as #2. I also drew a circle and annotated where the wire originated at. I used painters tape and a marker to annotate each.

This step is the most important because there is no one to one matching to the Blue Sea selector terminals. Once properly labeled then do one terminal at a time and remove the retaining nuts and cables from each terminal.

Pause and reflect:

You now will have the opportunity to place the switch in a new location or into the old position. Note, that you may have to improvise a mounting solution if you do not drill a new hole. The Blue Sea selector was smaller in circumference than the Guest one I replaced. I opted for drilling a new spot myself, moving the selector to a slightly more accessible spot. A Light now goes where the old one was.

But before going all gung ho. Ask yourself, will the current cables reach the new spot? You may have to extend the current ones for the new location will mean a trip to the store to get matching gauge wire for the project. It will be cheaper in most cases to just keep it where it is...and once installed you may find you never touch the selector switch ever again.

Possible additional items you will need prior to starting the actual re-wiring:

  • Large Bus Bar (4 terminals minimum) for tying in the ground (I advise this strongly). Most boats simply tie everything to the negative lead of the associated battery. The bus bar will allow for a common ground for all systems. ($60-90)

  • Small Bus bar for connecting "always live" circuits such as bilge pumps, memory for stereo, etc...($26-50)

  • Additional battery cables to handle the new configuration of wiring. I used automotive battery cables myself as the marine versions were 2X the price.
The Blue Sea Switch has four poles. the right side is grouped as #1 consisting of top and bottom terminals. In my installation this was for the starting / motor aspect. Side #2 consists also of top and bottom terminals and this is your housing side.

Attaching the Charger Circuits:

Odds are you have a charging system when connected to shore power to keep the batteries charged. On your old system, you probably had one attached to the #0 (for house battery) and a second one attached to #1 (for starting battery).

The charging cable attached to #0 on the old one will go to the top terminal #2 of the Blue Sea Switch. This is the house side.

The charging cable attached to #1 on the old one will go to the top terminal of #1 of the Blue Sea Switch. This is the starting side.

Attaching the house circuits

Connect up your house circuit wires (that run to your circuit panels) to the top terminal on #2 side of the Blue Sea System switch. In cases where you have more wires than will fit, you can use a bus bar, and run one lead from the terminal post to the bus bar. Remember to also install a protective cover over the bus per ABYC as it is a live circuit.

Attaching the Alternator:

The Alternator wire will go to the bottom post of #2.

Attaching the Starter:

Starter wire goes to top post of #1.

Before adding the Battery Cables:

Now is time to install the Automatic Charging Relay (ACR). Note that you want a decent location for this as the wires have to run underneath it. Also beware you need to install fuseable links inline, although I will admit I did not as of yet. They are not included with the system.

Mount the ACR in a suitable location - near the battery switch if possible - but enough distance that you can bend battery cables. Connect the Start Battery POSITIVE to the B terminal of the ACR.

Now connect the house battery terminal to your Selector by adding it to the bottom post of #2. Take another battery cable and attach it to the same post and run it to post A on the ACR. There is no need to run a separate cable from the house banks as the terminal post on the selector will do the same function just fine. You will also connect up any of the battery / metering sensing wires for the house battery to this post.

Now take a battery cable and from the POSITIVE terminal on the starter battery - connect it bottom post of #1. If you have a battery / metering sensing wire for battery gauge - attach here as well.

NOTE: The battery sensing wire can also be placed alternatively on the top posts for #1 or #2 sides of the Selector. Doing so will mean that the selector has to be ON to have the gauges read battery levels. That is how I have it arranged versus using the bottom posts.

Now install the negative terminal post. Please, make sure you get the large size one, its pricey all things considered but required. Attach all the battery, house circuit, and any other negative / grounding cables and secure them.

Now install the starting circuit wire the the appropriate terminal on the ACR, ground, led...

Double check the tightening of posts and nuts. Go back over how you installed it correct any issues you may find. Install any protective covers, secure battery etc.. The system should now be set-up.

To verify your system install. With the Selector OFF - turn on shore power, and turn on your battery charger if it is not hardwired with a circuit breaker. Using a voltage meter - measure the voltage output at the top terminals of both #1 and #2 of the battery switch. You should read 13.5 volts or so.

If you can turn off your battery charger do so. Now turn selector to ON. repeat the same.

Test starting the motor and go through your DC circuits and verify proper operation.

Hope this write-up helps someone else tackle this upgrade. It really is not difficult - just takes some patience and maybe a few runs to the store to get various cables and the likes...


See less See more
3
#2 ·
Nice one Jody. I have decided to go this route - thanks in large part to your persuasion after my stupidity this weekend. I'll pull this back up in the fall when I'm done sailing for the year.

I'd give you a rep point but it's not important anymore! :) :) :)

#3 ·

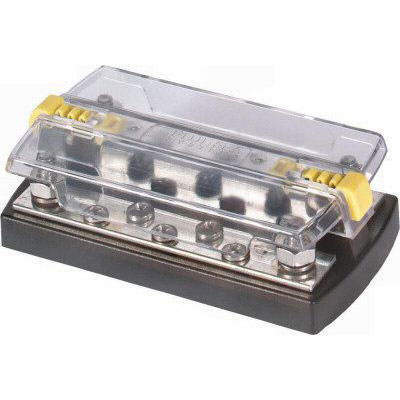

For bus bars, I prefer these:



A bit more convenient and takes care of both needs, as well as has a cover for ABYC compliance.

#6 ·
BTW, the switch Jody has posted a photo of in his OP has FOUR POSTS on the back. It is designed to switch the house and starting batteries on simultaneously, and isolate the house and starting loads unless it is in the combine position.

#7 ·
jody
thanks for the run down. i was debating on installing one of these when i rebuild my elec. panel next winter. you've probably saved me countless hours of retracing all of my new wiring wondering why my batteries won't work and cursing Blue Sea for coming up with this new fangaled technology.

#8 ·
I'll be attempting this sometime this week.

I went with 4 guage wire between the batteries and charger.... hopefully it wasn't overkill, it cost an arm and a leg.

#13 ·
Jody-

Just re-read your original post and thought I'd reply a bit more in depth.

If there was one gripe I did have when I finally started using my new Barberis, was that there was no easy access to the battery switch. It was under the nav table and impossible to see which mode it was selected to without getting on my hands and knees and hoping I do not bang my head on the table after I was done.
A good idea.

So, it was obvious to me that the first item in the electrical upgrade process would be a new switch. Blue Sea Systems sells a battery switch that is three positions but includes a automatic combiner / surge suppressor. The automatic part means that one doesn't have to switch to "combined" mode on the selector if the starter battery is low - it automatically switches over house banks to the starting circuits.

Actually the automatic part of this setup is the ACR, which is an Automatic Charging Relay, which combines the batteries when charging level voltages are sensed on either battery bank. The Dual Circuit Plus battery switch isolates the starting battery bank and engine starting loads from the house bank and house DC panel loads, and acts to protect the electronics from the voltage dropout and surge that can occur when starting the engine.

Installation is not difficult but can be a challenge for someone not quite sure where or what the wires currently on their Guest or Perko battery switches are. So, I figured I would share my tips on how I tackled the problem.

1. Turn off all power on both AC / DC side. This means pull out your shore power cable, and if possible disconnect leads from your batteries.

2. Undo the holding screws for your current switch so that you can pull out the original to actually handle it. Do not start disconnecting the cables on the back.

3. Your switch most likely will have three terminals on the back. You will want to label each wire with the position number that corresponds to the terminal / switch position. In this document I label the "off" terminal as #0, swith position #1 as #1, and the third as #2. I also drew a circle and annotated where the wire originated at. I used painters tape and a marker to annotate each.

This step is the most important because there is no one to one matching to the Blue Sea selector terminals. Once properly labeled then do one terminal at a time and remove the retaining nuts and cables from each terminal.
Most of the 1/2/Both/Off selector switches only have three posts. The problem you'll run into is that the new switch has four posts... and the wires on the common post need to be separated into the house side and starting side connections so that the new DCP switch does what it is supposed to.

Pause and reflect:

You now will have the opportunity to place the switch in a new location or into the old position. Note, that you may have to improvise a mounting solution if you do not drill a new hole. The Blue Sea selector was smaller in circumference than the Guest one I replaced. I opted for drilling a new spot myself, moving the selector to a slightly more accessible spot. A Light now goes where the old one was.
I would highly recommend putting the battery switch someplace that is readily accessible, since it may be necessary to turn it off quickly in an emergency. The severity of electrical fires can often be reduced by cutting power to them-if you can't reach the switch, you can't cut the power.

But before going all gung ho. Ask yourself, will the current cables reach the new spot? You may have to extend the current ones for the new location will mean a trip to the store to get matching gauge wire for the project. It will be cheaper in most cases to just keep it where it is...and once installed you may find you never touch the selector switch ever again.
If you're not using this switch fairly regularly, chances are you're not on the boat all that often or you're living on it. :) One is bad, the other is good.

Possible additional items you will need prior to starting the actual re-wiring:
  • Large Bus Bar (4 terminals minimum) for tying in the ground (I advise this strongly). Most boats simply tie everything to the negative lead of the associated battery. The bus bar will allow for a common ground for all systems. ($60-90)
  • Small Bus bar for connecting "always live" circuits such as bilge pumps, memory for stereo, etc...($26-50)
  • Additional battery cables to handle the new configuration of wiring. I used automotive battery cables myself as the marine versions were 2X the price.
The Blue Sea Switch has four poles. the right side is grouped as #1 consisting of top and bottom terminals. In my installation this was for the starting / motor aspect. Side #2 consists also of top and bottom terminals and this is your housing side.​
You will probably also want to have a proper battery terminal crimper, which is not a cheap tool... about $130 or so. You'll probably also a proper wire crimper and adhesive-lined heat shrink terminals.
Attaching the Charger Circuits:

Odds are you have a charging system when connected to shore power to keep the batteries charged. On your old system, you probably had one attached to the #0 (for house battery) and a second one attached to #1 (for starting battery).

The charging cable attached to #0 on the old one will go to the top terminal #2 of the Blue Sea Switch. This is the house side.

The charging cable attached to #1 on the old one will go to the top terminal of #1 of the Blue Sea Switch. This is the starting side.​
If you have a decent charger, you should only need one. The ACR will take care of combining the two banks when the charger is active.

BTW, jody's instructions below assume the #1 bank is the starting bank and the #2 bank is the house bank.

Attaching the house circuits
Connect up your house circuit wires (that run to your circuit panels) to the top terminal on #2 side of the Blue Sea System switch. In cases where you have more wires than will fit, you can use a bus bar, and run one lead from the terminal post to the bus bar. Remember to also install a protective cover over the bus per ABYC as it is a live circuit.

Attaching the Alternator:

The Alternator wire will go to the bottom post of #2.

Attaching the Starter:

Starter wire goes to top post of #1.

Before adding the Battery Cables:

Now is time to install the Automatic Charging Relay (ACR). Note that you want a decent location for this as the wires have to run underneath it. Also beware you need to install fuseable links inline, although I will admit I did not as of yet. They are not included with the system.

Mount the ACR in a suitable location - near the battery switch if possible - but enough distance that you can bend battery cables. Connect the Start Battery POSITIVE to the B terminal of the ACR.

Now connect the house battery terminal to your Selector by adding it to the bottom post of #2. Take another battery cable and attach it to the same post and run it to post A on the ACR. There is no need to run a separate cable from the house banks as the terminal post on the selector will do the same function just fine. You will also connect up any of the battery / metering sensing wires for the house battery to this post.

Now take a battery cable and from the POSITIVE terminal on the starter battery - connect it bottom post of #1. If you have a battery / metering sensing wire for battery gauge - attach here as well.

NOTE: The battery sensing wire can also be placed alternatively on the top posts for #1 or #2 sides of the Selector. Doing so will mean that the selector has to be ON to have the gauges read battery levels. That is how I have it arranged versus using the bottom posts.

Now install the negative terminal post. Please, make sure you get the large size one, its pricey all things considered but required. Attach all the battery, house circuit, and any other negative / grounding cables and secure them.

Now install the starting circuit wire the the appropriate terminal on the ACR, ground, led...

Double check the tightening of posts and nuts. Go back over how you installed it correct any issues you may find. Install any protective covers, secure battery etc.. The system should now be set-up.

To verify your system install. With the Selector OFF - turn on shore power, and turn on your battery charger if it is not hardwired with a circuit breaker. Using a voltage meter - measure the voltage output at the top terminals of both #1 and #2 of the battery switch. You should read 13.5 volts or so.

If you can turn off your battery charger do so. Now turn selector to ON. repeat the same.

Test starting the motor and go through your DC circuits and verify proper operation.

Hope this write-up helps someone else tackle this upgrade. It really is not difficult - just takes some patience and maybe a few runs to the store to get various cables and the likes...​

#14 ·
Ok,

I read the instructions and had it, then I re-read this post and got confused.

Here are the instructions:


Here's how I'm going to install:

#15 ·
Looks good. :)

#16 ·
You actually need that connection - as it provides the charging source for when you are motoring from the alternator. There are various ways to hook this up and the diagrams they give are reference only.

I run the alternator output to source input of DC to the house banks (on the selector switch), as the starter battery will get the topping off of the selector switch when in the on position. But you can also do it as in the diagram you have listed. Just means that the charging source goes through the ACR to get to the house batteries and starter battery gets it directly first.

But not tying in the alternator (which is the crossed out line you have) would prevent purpose of running the motor to top off the batteries and or run loads under power. Unless of course you have no alternator..then not needed...

#17 ·
My motor has two wires, ground and positive. The positive provides a charge for starting and subsequently sends it's alternator charge down that same wire back to the battery. It should charge correctly with the "ON" selection.

#19 ·
Cool thanks, I'll install this evening, I pre-wired everything on the switches and ACM, this should be a quick one.

Thanks to you guys that is,
M

#20 ·
Birdface-

You may have just jinxed yourself. Everyone knows that pre-wiring stuff means that you'll find that one wire is too short to reach where you want to put the stuff... :) And working on a boat is never as easy as you think it is going to be.

#21 ·
You bastard, you are so right. :eek: :mad: :confused: :)

My 15 minute installation was 3 hours.:(

My new battery contacts/heads were a different gauge than my old. So none of the crimped connectors on the wires I pre-built fit. So I was sitting there with a battery powered drill grinding out the openings to fit over my battery contacts in moderate waves. It was also, of course, 100 degrees under my cockpit where all the work was taking place.

I was also one wire short so I started poking around. I traced each system in my boat and found a strange powered metal cylinder mounted under my sink. Any guesses? No idea what it did.

So curiosity got the better of me and I started disassembling it. Would you believe it was a 32 year old CIGARETTE LIGHTER, still powered, sitting under my sink mounted to old dry wood. TERRIFIC, just what I wanted on the boat... why didn't I think of mounting a 32 year old flame ignition device on dry wood???

The good news is that's been pulled and my boat is probably 40 times less likely to burst into flames randomly due to corrosion causing the "lighter" to short and catch fire. I also lost about 40 lbs of water weight sweating in the crawlspace.

Fun stuff, but now I have isolated dual batteries and I'm sure that's worth it.

Thanks for prompting me to go on this adventure!

Total project cost was about $300 including switch/charge controller package and about 10 feet of 4 gauge marine cable and terminators for them all.

BTW Jody I skipped the fusing as well. It would've added about $70-100 bucks to fuse the larger gauge wire and Blue Sea confirmed it's really mainly for protecting the wires themselves, since the charge controller is fused and all the instruments are fused as well. You guys agree or should I plan on putting in a fuse panel for the controller as a second step?

#22 ·
Umm... you jinxed yourself, and I'm the bastard... I was just pointing it out... :) Go ahead, shoot the messenger... :)

LOL...serves ya right... :)

You bastard, you are so right. :eek: :mad: :confused: :)

My 15 minute installation was 3 hours.:(

My new battery contacts/heads were a different gauge than my old. So none of the crimped connectors on the wires I pre-built fit. So I was sitting there with a battery powered drill grinding out the openings to fit over my battery contacts in moderate waves. It was also, of course, 100 degrees under my cockpit where all the work was taking place.

I was also one wire short so I started poking around. I traced each system in my boat and found a strange powered metal cylinder mounted under my sink. Any guesses? No idea what it did.

So curiosity got the better of me and I started disassembling it. Would you believe it was a 32 year old CIGARETTE LIGHTER, still powered, sitting under my sink mounted to old dry wood. TERRIFIC, just what I wanted on the boat... why didn't I think of mounting a 32 year old flame ignition device on dry wood???

The good news is that's been pulled and my boat is probably 40 times less likely to burst into flames randomly due to corrosion causing the "lighter" to short and catch fire. I also lost about 40 lbs of water weight sweating in the crawlspace.

Fun stuff, but now I have isolated dual batteries and I'm sure that's worth it.

Thanks for prompting me to go on this adventure!

Total project cost was about $300 including switch/charge controller package and about 10 feet of 4 gauge marine cable and terminators for them all.

BTW Jody I skipped the fusing as well. It would've added about $70-100 bucks to fuse the larger gauge wire and Blue Sea confirmed it's really mainly for protecting the wires themselves, since the charge controller is fused and all the instruments are fused as well. You guys agree or should I plan on putting in a fuse panel for the controller as a second step?

#24 ·
Birdy-

Have a second beer on me... :)
