head...Raritan that is....

The admiral says rebuild the pump on the head. It only leaks a little and just at the top. Being that she has the super sensitive type nose (cause I smell nothing) and can smell the head with each pump she deems this necessary. I'm thinking "this is the perfect time to replace the head". Then I discover that my Raritan is a pretty nice unit compared to what I would buy. SO....how do I tell which Raritan I have so I can order the rebuild kit? "fiasco" is a 1980 Islander Bahama 30 but the head looks like one of the newer model Raritan's. Research seems to indicate it "might" be a phII but is there a way to tell for sure before I order the rebuild kit?
NCountry is offline
Quote Quick Reply Share with Facebook
Sponsored Links
Advertisement

post #2 of 10 Old 07-21-2008
Telstar 28

sailingdog's Avatar

Join Date: Mar 2006
Location: New England
Posts: 43,290
Thanks: 0
Thanked 14 Times in 12 Posts
Rep Power: 14

It should have a label as to what model head it is someplace on it... lacking that, take some photos of the head and e-mail them to Raritan's customer service department to see if they can identify it.

Sailingdog

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Telstar 28
New England

You know what the first rule of sailing is? ...Love. You can learn all the math in the 'verse, but you take
a boat to the sea you don't love, she'll shake you off just as sure as the turning of the worlds. Love keeps
her going when she oughta fall down, tells you she's hurting 'fore she keens. Makes her a home.

—Cpt. Mal Reynolds, Serenity (edited)

If you're new to the Sailnet Forums... please read this
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
.

Still—DON'T READ THAT POST AGAIN.
sailingdog is offline
Quote Quick Reply Share with Facebook
post #3 of 10 Old 07-21-2008
Special Delivery

speciald's Avatar

Join Date: Mar 2007
Location: live on boat
Posts: 661
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 9

Send a message via Skype™ to speciald
There are 2 Raritan PH2 repair kits. One is for units manufactured prior to 1982 ( I think) and the other for later units. They can be bought online for about $50. You may not need the whole kit, though. The seal on the shaft may account for your leak - ~$4. A worn joker valve -~$15 -will allow back fill of the bowl. Depending on when last serviced, you may need other parts like the flopper valve and the O rings on the plunger. If that's the case buy the rebuild kit. Unfortunately, I've become quite experienced at repairing these heads but I prefer them to other company's products.
speciald is offline
Quote Quick Reply Share with Facebook
post #4 of 10 Old 07-21-2008
Special Delivery

speciald's Avatar

Join Date: Mar 2007
Location: live on boat
Posts: 661
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 9

Send a message via Skype™ to speciald
To identify the head - go to Raritan web site. They have blown-up parts pactures.
speciald is offline
Quote Quick Reply Share with Facebook
post #5 of 10 Old 07-21-2008
Senior Member

Pamlicotraveler's Avatar

Join Date: Aug 2006
Location: Creedmoor NC
Posts: 605
Thanks: 5
Thanked 1 Time in 1 Post
Rep Power: 9

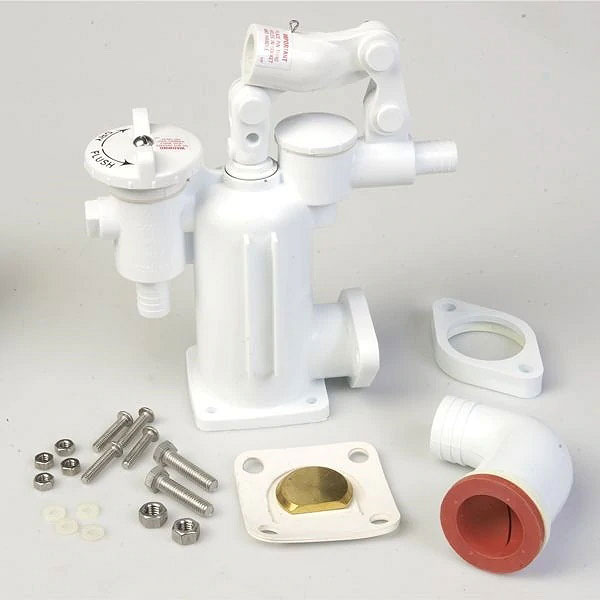

For about $150 you can buy a "Pump Assembly Kit" and save your free time for sailing.

For the PHII


So for about $100 more than the rebuild kit you get everything you need, and its all brand new and ready to go in.

Twenty years from now you will be more disappointed by the things y%^&*.....oh never mind. 90% of the people on sailing forums already use that as their signature! I'm not a conformist.
Pamlicotraveler is offline
Quote Quick Reply Share with Facebook
post #6 of 10 Old 07-22-2008
moderate?

camaraderie's Avatar

Join Date: May 2002
Location: East Coast
Posts: 13,877
Thanks: 0
Thanked 3 Times in 3 Posts
Rep Power: 16

....Then after fixing it she will still tell you it smells funny/bad and you will end up ripping out all your 1.5" hose which is permeated with odor and is the real cause of the smell 90% of the time. (The other 10% is tank leaks or overflow.) Do yourself a favor and replace the hose at the same time you do the head fix and save yourself a lot of swearing!

No longer posting. Reach me by PM!
camaraderie is offline
Quote Quick Reply Share with Facebook
post #7 of 10 Old 07-22-2008
Telstar 28

sailingdog's Avatar

Join Date: Mar 2006
Location: New England
Posts: 43,290
Thanks: 0
Thanked 14 Times in 12 Posts
Rep Power: 14

And don't go cheap on the sanitation hose.... get the good stuff. It lasts a lot longer than the cheap stuff.

Sailingdog

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Telstar 28
New England

You know what the first rule of sailing is? ...Love. You can learn all the math in the 'verse, but you take
a boat to the sea you don't love, she'll shake you off just as sure as the turning of the worlds. Love keeps
her going when she oughta fall down, tells you she's hurting 'fore she keens. Makes her a home.

—Cpt. Mal Reynolds, Serenity (edited)

If you're new to the Sailnet Forums... please read this
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
.

Still—DON'T READ THAT POST AGAIN.
sailingdog is offline
Quote Quick Reply Share with Facebook
post #8 of 10 Old 07-22-2008
Member

Join Date: Aug 2007
Location: Aboard
Posts: 82
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0

Most likely the source of the odor is the intake hose. One of the heads began "smelling" during/after the flush cycle. Turned out to be the intake hose. If it was the discharge hose, it would smell all the time.

As far as rebuilding the head itself, if it functions well, leave it be.
bottleinamessage is offline
Quote Quick Reply Share with Facebook
post #9 of 10 Old 07-22-2008 Thread Starter
Admirals fav target

Join Date: May 2006
Location: On land unfortunately
Posts: 228
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 10

Pamlico- the pic looks just like the pump on my head. Do the PHI's look the same or are they distinctly different? (where'd ya get the pic) Thanks folks!
NCountry is offline
Quote Quick Reply Share with Facebook
post #10 of 10 Old 07-22-2008
Senior Member

Pamlicotraveler's Avatar

Join Date: Aug 2006
Location: Creedmoor NC
Posts: 605
Thanks: 5
Thanked 1 Time in 1 Post
Rep Power: 9

NC-They are probably different. This is for the PHII
This is from Defender

Twenty years from now you will be more disappointed by the things y%^&*.....oh never mind. 90% of the people on sailing forums already use that as their signature! I'm not a conformist.
Pamlicotraveler is offline
Quote Quick Reply Share with Facebook
