  #11
Old 11-02-2008
rikhall's Avatar
old guy :)

Join Date: Feb 2008
Location: Fredericton, NB, Canada
Posts: 1,035
Thanks: 12
Thanked 13 Times in 11 Posts
Rep Power: 7
rikhall will become famous soon enough
I am neither a certified mechanic nor the son of one. I did install my Yanmar 2GM20F. I also enjoy searching the web. Here are three pictures, for what they are worth:

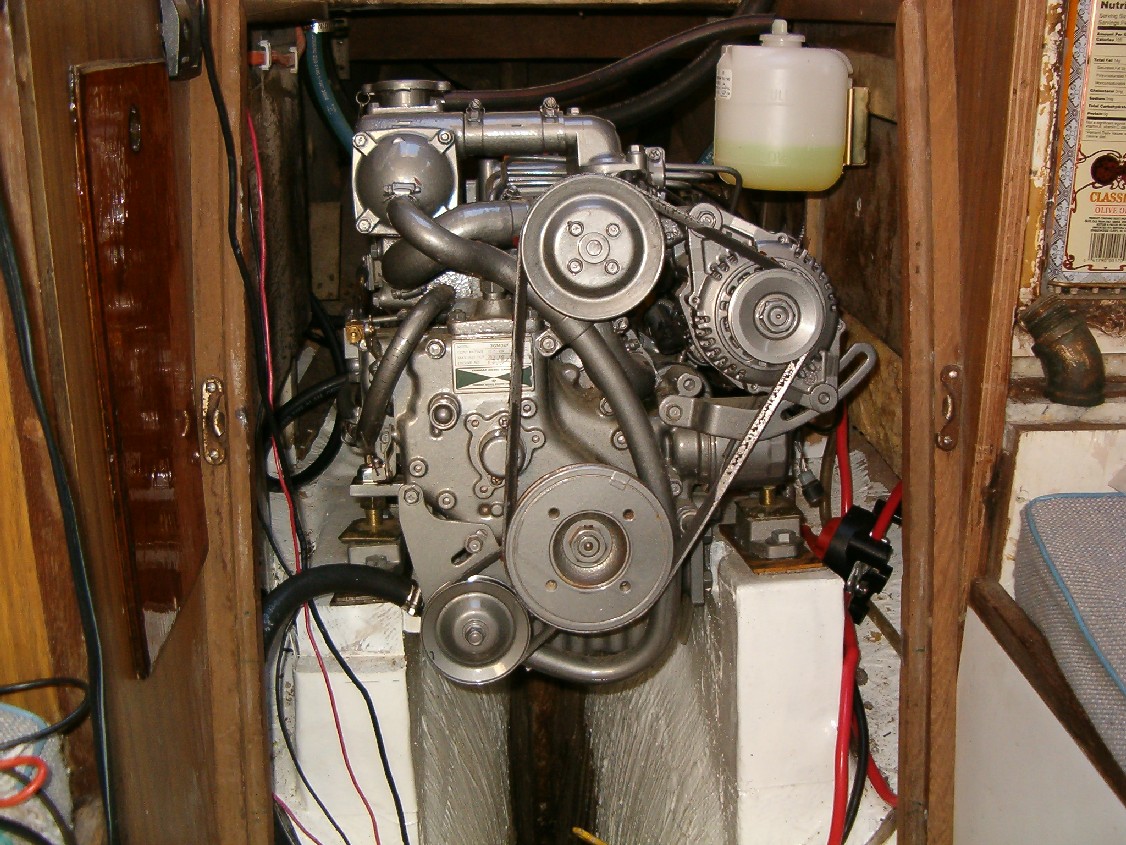

From the web - http://www.alberg30.org/maintenance/...nmarphoto5.jpg

Here are two from my engine - I think mine were a bit high:

http://rikhall.com/Engine%20coolant%20tank1.jpg

http://rikhall.com/engine%20coolant%20tank%202.jpg
__________________
Irwin Citation 34
Mystery
Reply With Quote Quick reply to this message Share with Facebook
  #12
Old 11-02-2008
Senior Member

Join Date: Feb 2008
Posts: 164
Thanks: 1
Thanked 0 Times in 0 Posts
Rep Power: 7
preservedkillick is on a distinguished road
Thanks Rik & everyone else for the answers.

Rik, I'd not seen that Alberg engine photo before. That looks like a great setup, but my Vitus takes up too much room. I did notice that the middle of the tank is about the same level as where the hose comes out of the heat exchanger.

I'm heading down to the boat now to take another look. I may end up relocating it in a cockpit locker
__________________
Preserved Killick


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Seagrass
Boothbay Harbor, ME
Alberg 30:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message Share with Facebook
  #13
Old 11-03-2008
Omatako's Avatar
Senior Member

Join Date: Sep 2003
Location: Auckland New Zealand
Posts: 2,446
Thanks: 0
Thanked 30 Times in 27 Posts
Rep Power: 12
Omatako will become famous soon enough
Just to answer your question about the pressure cap on the heat exchanger - the pressure cap is intended to raise the pressure in the system and in so doing raise the boiling point of the coolant. That way, if you do get a slight overheat the coolant won't boil at 100 degrees C and it won't blow out of the system.

In the system on your boat, the pressure cap will allow normal expansion to go back to the expansion tank when the pressure in the system exceeds the value of the cap and the expansion tank will replace the coolant thru a return valve in the pressure cap when the engine cools. It is thus better for the tank to be at least at or above the level of the pressure cap.

Note also that if the pressure cap is removed while the engine is hot (for topping up purposes) the pressure in the system is relieved and if there is a tendency to overheat, it will be exacerbated by the cap having been removed because the hot engine will not be able to build the pressure back (no expansion). That is really the reason why it is bad practise to remove caps from hot engines and not only because you'll get scalded (which could also happen )
__________________

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

__________________

"Two possibilities exist: Either we are alone in the Universe or we are not. Both are equally terrifying."

Arthur C. Clarke
Reply With Quote Quick reply to this message Share with Facebook
