Tricky Shaft Log Leak Repair

I'm working on a fix for leaks in a Mull 34 named Soma, and I want to ask the Sailnet community whether you have any ideas. We have finally figured out where it leaks, and now the trouble is how to fix it.

The boat has a sump in the bilge, a hollow area in the keel, with a hydraulic drive motor in it. The propeller shaft exits the boat through a shaft log at the aft end of the sump, and then passes through approximately 2 feet of fiberglass before it exits at the trailing edge of the fin keel. The leak originates inside of this tunnel through the keel. We confirmed this by pressurizing it with a shop vac and some soapy water. The air bubbled up out of many surprising locations in the bilge of the boat.

With the launch date set for May 2nd, what can we do to fix the leaks before then? The ideas put forth so far are filling the tube/tunnel with epoxy and drilling a new hole (how to keep a 1 1/2" drill bit on course for 2 feet?), boring the hole bigger to put in a fiberglass tube (ditto?), coating the inside with gelcoat (how?), or try penetrating epoxy (how do we know we got all the leaks?)

The sure-fire fix would be to rip the side of the keel open, and rebuild the tube, but the launch date is coming fast. Has anybody here faced a problem like this before?
JonG is offline
Quote Quick Reply Share with Facebook
Sponsored Links
Advertisement

post #2 of 8 Old 04-15-2009
the pointy end is the bow

erps's Avatar

Join Date: Aug 2006
Location: La Conner, Washington
Posts: 6,260
Thanks: 2
Thanked 27 Times in 26 Posts
Rep Power: 11

Geez, that sounds expensive. I'm still not quite sure how you determined there is a leak. Seems like that tunnel should have water in it and there should be some sort of a stuffing box in the bilge to keep the water in the tunnel from coming in the boat. I have a similar arrangement in my boat. The PSS shaft seal is inside the boat bilge. What do you have for a stuffing box?


not my boat:

Ray
S.V. Nikko
1983 Fraser 41
La Conner, WA


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Boating for over 25 years, some of them successfully.

Last edited by erps; 04-15-2009 at 08:18 PM.
erps is offline
Quote Quick Reply Share with Facebook
post #3 of 8 Old 04-15-2009
Telstar 28

sailingdog's Avatar

Join Date: Mar 2006
Location: New England
Posts: 43,290
Thanks: 0
Thanked 15 Times in 12 Posts
Rep Power: 14

Spray the interior of the tube with this stuff...

Sailingdog

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Telstar 28
New England

You know what the first rule of sailing is? ...Love. You can learn all the math in the 'verse, but you take
a boat to the sea you don't love, she'll shake you off just as sure as the turning of the worlds. Love keeps
her going when she oughta fall down, tells you she's hurting 'fore she keens. Makes her a home.

—Cpt. Mal Reynolds, Serenity (edited)

If you're new to the Sailnet Forums... please read this
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
.

Still—DON'T READ THAT POST AGAIN.
sailingdog is offline
Quote Quick Reply Share with Facebook
post #4 of 8 Old 04-15-2009
the pointy end is the bow

erps's Avatar

Join Date: Aug 2006
Location: La Conner, Washington
Posts: 6,260
Thanks: 2
Thanked 27 Times in 26 Posts
Rep Power: 11

If the boat is on stands, a person could also run water in the bilge and see if it leaks out.

Ray
S.V. Nikko
1983 Fraser 41
La Conner, WA


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Boating for over 25 years, some of them successfully.
erps is offline
Quote Quick Reply Share with Facebook
post #5 of 8 Old 04-16-2009 Thread Starter
Junior Member

Join Date: Apr 2009
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0

Hey, thanks for the replies! I always know that there's something I'm assuming, but not communicating in a message. Yes, here in the frozen North, the sailing club has to keep the boat on its trailer for half the year. We know that water from inside the hull leaks out through the propeller shaft tube, because it formed a rusty, frozen stream out of the gland and down the side of the keel!

The boat has a PSS dripless shaft seal, but it hasn't been too useful in this case, as it would fill up with water from the leak-- about 20-25 gallons per day last season! With the propeller shaft and the PSS shaft seal removed, we clamped a piece of rubber over the inboard side of the shaft log, and stuck the blower hose from the shop vac in the gland from the outside. With the tube thus pressurized, air leaked into the boat from various spots in the bilge, including one of the forward keel bolts. (The source of the rust?) I'm pretty certain that the water enters a crack inside the tube, and runs along the encapsulated lead ballast to the keel bolt-- we found a lot of the same wicking when we tore most of the (saturated) polyester fairing compound off the keel a few years ago, to replace it with epoxy compound.

I will give the Captain Tolley's a try. I hadn't thought of spraying it in. (At $14.99 for two ounces, it's mighty expensive to try to pour it in!) Thanks for the suggestion!
JonG is offline
Quote Quick Reply Share with Facebook
post #6 of 8 Old 04-16-2009
Telstar 28

sailingdog's Avatar

Join Date: Mar 2006
Location: New England
Posts: 43,290
Thanks: 0
Thanked 15 Times in 12 Posts
Rep Power: 14

In theory, if the cracks aren't too large, it should fill them and seal them. Good luck.
Quote:
Originally Posted by JonG View Post
Hey, thanks for the replies! I always know that there's something I'm assuming, but not communicating in a message. Yes, here in the frozen North, the sailing club has to keep the boat on its trailer for half the year. We know that water from inside the hull leaks out through the propeller shaft tube, because it formed a rusty, frozen stream out of the gland and down the side of the keel!

The boat has a PSS dripless shaft seal, but it hasn't been too useful in this case, as it would fill up with water from the leak-- about 20-25 gallons per day last season! With the propeller shaft and the PSS shaft seal removed, we clamped a piece of rubber over the inboard side of the shaft log, and stuck the blower hose from the shop vac in the gland from the outside. With the tube thus pressurized, air leaked into the boat from various spots in the bilge, including one of the forward keel bolts. (The source of the rust?) I'm pretty certain that the water enters a crack inside the tube, and runs along the encapsulated lead ballast to the keel bolt-- we found a lot of the same wicking when we tore most of the (saturated) polyester fairing compound off the keel a few years ago, to replace it with epoxy compound.

I will give the Captain Tolley's a try. I hadn't thought of spraying it in. (At $14.99 for two ounces, it's mighty expensive to try to pour it in!) Thanks for the suggestion!

Sailingdog

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Telstar 28
New England

You know what the first rule of sailing is? ...Love. You can learn all the math in the 'verse, but you take
a boat to the sea you don't love, she'll shake you off just as sure as the turning of the worlds. Love keeps
her going when she oughta fall down, tells you she's hurting 'fore she keens. Makes her a home.

—Cpt. Mal Reynolds, Serenity (edited)

If you're new to the Sailnet Forums... please read this
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
.

Still—DON'T READ THAT POST AGAIN.
sailingdog is offline
Quote Quick Reply Share with Facebook
post #7 of 8 Old 04-27-2009
Senior Member

nk235's Avatar

Join Date: Apr 2007
Location: Long Island
Posts: 404
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 9

Exclamation

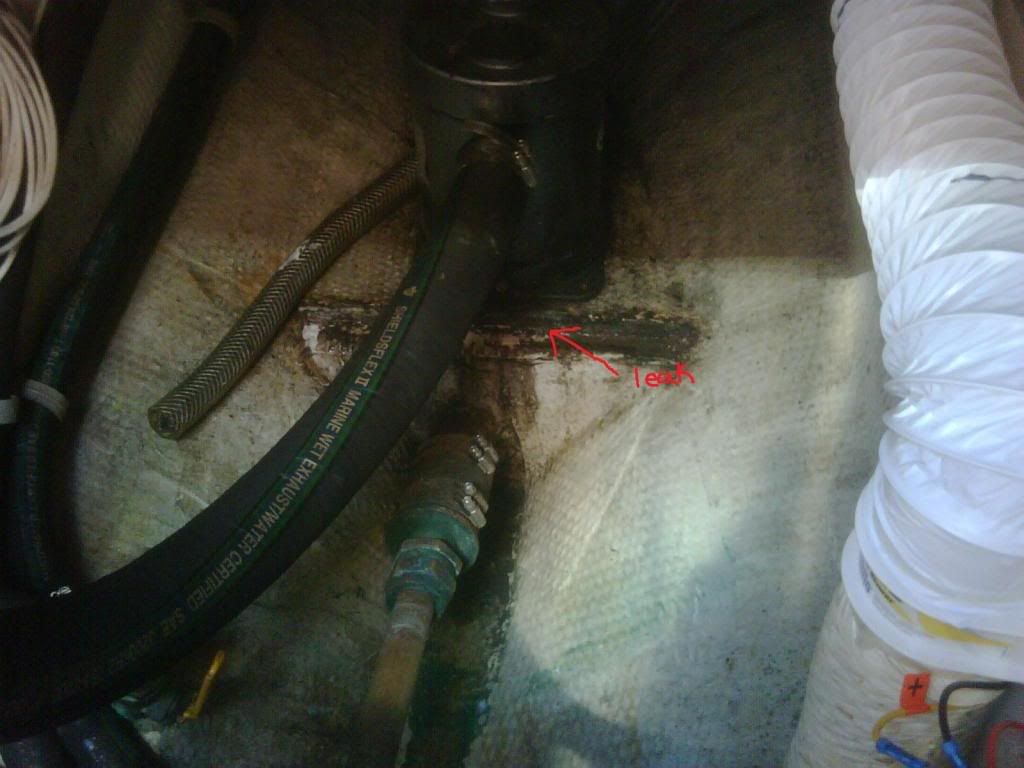

I think I have a very similar if not identical problem. Boat just went in a few weeks ago and just this past weekend as I was playing around with the stuffing box I noticed a small leak coming from the platform the muffler is screwed onto. It only leaks when the engine is in gear and at cruising RPM and it sprays a very small amount of water from a small pin sized hole. The muffler seems to sit on a raised platform of fiberglass ontop the solid fiberglass of the hull so that the screws don't screw into the hole. It is inbetween these two layers that I notice the leak. At first I thought it might be the muffler but I took it out and it is dry. Also it does not leak at all unless this boat is cranking under power so I think it could be the shaft log leaking.
