replacing window channel

Howdy

I got myself in a pickle without an exit strategy. The windows in my newport 30 were leaking so i pulled them out and pulled the glass out of the frame. The rubber gasket that ran between the outside of the window and the glass had hardened and shrunk some.

I'm left with the problem of how to bed glass in the aluminum channel. Going into this i thought butyl tape was the answer to all life's problems but there's scarcely a mention of it for this application outside of bedding automotive windshields.

Here's what i pulled out. Notice the L-shaped gasket, the channel on the right is where the glass goes.


My question is, what do i use to bed the glass to the aluminum? Where can I get some?

One possible solution, someone sent me a picture of a channel he ordered from catalina direct. Mine's a newport and the cross section is a U instead of L but it looks good. Think it will work?

Catalina Direct: Aluminum Window Reseal Kit C-30, C-36

Whenever I search for solutions to this problem I invariably end up finding a guide on how to throw away the aluminum frames and bolt on lexan. From where i stand, I understand the motivation completely. I'd consider cutting some myself but the surface is slightly bowed and looks like I would have to bend it.

What do i do? Is there someone in the annapolis area that carries appropriate window channels? Barring that, is there someone who cuts lexan windows?
Reply With Quote Share with Facebook
  #2
Old 05-15-2009
sailingdog's Avatar
Telstar 28

Join Date: Mar 2006
Location: New England
Posts: 43,291
Thanks: 0
Thanked 11 Times in 11 Posts
Rep Power: 13
sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice
First, glass doesn't shrink...

Second, I don't see any reason why you couldn't use butyl tape to bed the glass into the channel. Of course, better photos would help make identifying the problem and coming up with a solution a lot easier.
__________________
Sailingdog

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Telstar 28
New England

You know what the first rule of sailing is? ...Love. You can learn all the math in the 'verse, but you take
a boat to the sea you don't love, she'll shake you off just as sure as the turning of the worlds. Love keeps
her going when she oughta fall down, tells you she's hurting 'fore she keens. Makes her a home.

—Cpt. Mal Reynolds, Serenity (edited)

If you're new to the Sailnet Forums... please read this
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
.

Still—DON'T READ THAT POST AGAIN.
Reply With Quote Share with Facebook
  #3
Old 05-15-2009
nailbunnySPU's Avatar
Meat Popsicle

Join Date: Apr 2009
Location: marylandish
Posts: 110
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 6
nailbunnySPU is on a distinguished road
It's syntactically correct, the gasket between the glass and the frame shrank.

What do you need to see?
Reply With Quote Share with Facebook
  #4
Old 05-15-2009
smackdaddy's Avatar
Last Man Standing

Join Date: Aug 2008
Posts: 13,379
Thanks: 91
Thanked 92 Times in 86 Posts
Rep Power: 9
smackdaddy is a jewel in the rough smackdaddy is a jewel in the rough smackdaddy is a jewel in the rough
Don't worry bunny - your statement was correct - you just used too many syllables for Dog.
Reply With Quote Share with Facebook
  #5
Old 05-15-2009
nailbunnySPU's Avatar
Meat Popsicle

Join Date: Apr 2009
Location: marylandish
Posts: 110
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 6
nailbunnySPU is on a distinguished road

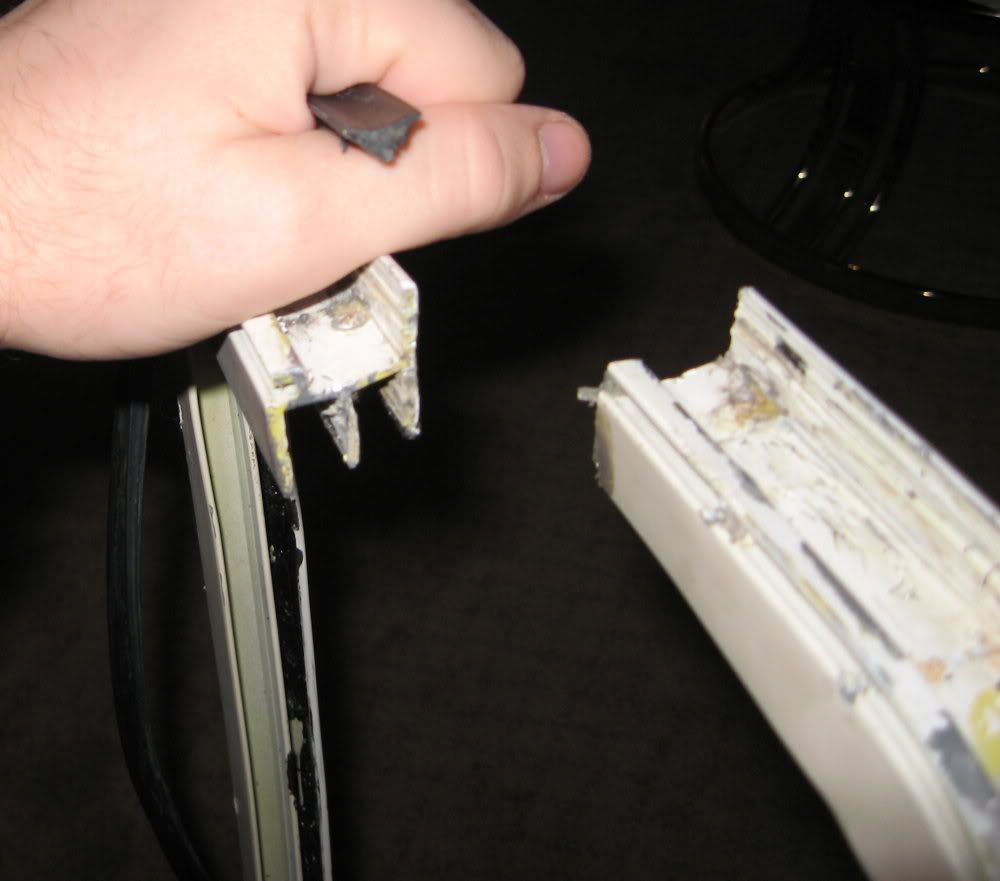

This is the dry slightly shrunken gasket and the crappy aluminum frame.

Last edited by nailbunnySPU; 05-15-2009 at 11:49 AM.
Reply With Quote Share with Facebook
  #6
Old 05-15-2009
sailingdog's Avatar
Telstar 28

Join Date: Mar 2006
Location: New England
Posts: 43,291
Thanks: 0
Thanked 11 Times in 11 Posts
Rep Power: 13
sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice
A photo of the whole frame would be helpful. Butyl tape is too sticky to slid the glass along it... so if that's how you'd have to get the glass into the channel, it probably won't work very well. Also, how does the frame mount to the hull?? A photo of that would be helpful...unlike smacky...
__________________
Sailingdog

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Telstar 28
New England

You know what the first rule of sailing is? ...Love. You can learn all the math in the 'verse, but you take
a boat to the sea you don't love, she'll shake you off just as sure as the turning of the worlds. Love keeps
her going when she oughta fall down, tells you she's hurting 'fore she keens. Makes her a home.

—Cpt. Mal Reynolds, Serenity (edited)

If you're new to the Sailnet Forums... please read this
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
.

Still—DON'T READ THAT POST AGAIN.
Reply With Quote Share with Facebook
  #7
Old 05-15-2009
Junior Member

Join Date: May 2009
Location: Buffalo,NY
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
AKWNY is on a distinguished road
I have a newport 28 with window frames and gaskets that appear to match your photos. After a bit of searching I was able to locate a gasket at a local window shop in Buffalo that appears like it will work. I had to make new spacers for the glass because it was causing alittle deformation of the gasket. Did a leak test with the window horizontal using a preasure washer and standing water and no water made it past the gasket into the channel. This weekend will install the windows back on the boat. I can give you the part number and phone number of the place, they should be able to send you a sample.
Reply With Quote Share with Facebook
  #8
Old 05-15-2009
nailbunnySPU's Avatar
Meat Popsicle

Join Date: Apr 2009
Location: marylandish
Posts: 110
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 6
nailbunnySPU is on a distinguished road
AKWNY, sounds great, any bit of information is helpful. What did you use for spacers? Oh and welcome to Sailnet.

SD, the frames only come apart at the place i photographed. They do not break into two pieces, they must be pried open and based on how hard it was to get it out, putting it back in will certainly involve a lot of sliding and profanity, so that probably rules out butyl tape then.

What on earth do i use to clean the frame?

Last edited by nailbunnySPU; 05-15-2009 at 12:06 PM.
Reply With Quote Share with Facebook
  #9
Old 05-15-2009
sailingdog's Avatar
Telstar 28

Join Date: Mar 2006
Location: New England
Posts: 43,291
Thanks: 0
Thanked 11 Times in 11 Posts
Rep Power: 13
sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice
Yup... Butyl tape would make that a nightmare...
__________________
Sailingdog

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Telstar 28
New England

You know what the first rule of sailing is? ...Love. You can learn all the math in the 'verse, but you take
a boat to the sea you don't love, she'll shake you off just as sure as the turning of the worlds. Love keeps
her going when she oughta fall down, tells you she's hurting 'fore she keens. Makes her a home.

—Cpt. Mal Reynolds, Serenity (edited)

If you're new to the Sailnet Forums... please read this
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
.

Still—DON'T READ THAT POST AGAIN.
Reply With Quote Share with Facebook
  #10
Old 05-15-2009
nailbunnySPU's Avatar
Meat Popsicle

Join Date: Apr 2009
Location: marylandish
Posts: 110
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 6
nailbunnySPU is on a distinguished road
http://www.just-price.com/glazing-vi...item_3525.html

how about that?
