Thru-hulls and bilge discharge (Coronado 25)

Some of my boat's drain systems confuse me.

There is a tube that goes from one drain (or pair of drains?) in the aft of the
cockpit directly downward, through the bottom of the boat. 'Glassed in place, no valve. You can only see it by looking into the keel hollow under the cockpit, on the centerline of the boat. I had to remove the companionway laddery to look in there. I'm told it's probably for the knotmeter. Maybe so.

The cockpit drain on the forward, starboard side has a thick, black
radiator-looking hose that connects to a small metal thru-hull valve that has no handle. It appears to have a small square where a removeable handle would attach so that you could operate the valve.

The sink/icebox drain thru-hull has such a handle. I wonder if it removes and
swaps between the two? Either way, in this frigid weather, I won't be testing
them.

I don't know where the bilge originally discharged, but I followed the remnants
of the discharge tube all the way back to the outboard engine well. I'm pretty
sure that's not right, but I guess it doesn't harm anything to pump it out
there. I can't/won't re-route it through a thru-hull while the boat's in the water this winter.

Man...the PO had the wiring and the discharge tube running up through the
grab-hole in the keel access panel for all to step on and trip over. The bilge pump was such a tiny thing. Barely adequate for de-watering a standing puddle, and useless for damage control. I'm installing a 1500 GPH Rule pump. That's 25 GPM, probably more like 20 GPM when pumping through a 6' head of tubing. That should pump a full bilge clear in 1-2 minutes. The discharge and the wiring have been re-routed through the keel hollow, out of the way as originally intended.

Excellent progress today.
BubbleheadMd is offline
Quote Quick Reply Share with Facebook
Sponsored Links
Advertisement

post #2 of 9 Old 12-07-2009
Senior Member

Join Date: Jul 2006
Location: New Jersey
Posts: 143
Thanks: 4
Thanked 0 Times in 0 Posts
Rep Power: 10

The cockpit drains should discharge through the hull above the waterline. Their thru-hulls generally do not have valves on them. The same is true for the bilge pump. When I leave my boat I close all the through hulls that are below the waterline(engine, sink, head, etc.) The cockpit and bilge must drain whether I am there or not, therefore, they discarge above the waterline so a break in the hose will not sink the boat.
fordo is offline
Quote Quick Reply Share with Facebook
post #3 of 9 Old 12-07-2009 Thread Starter
Chastened

BubbleheadMd's Avatar

Join Date: Nov 2009
Location: Edgewater/Annapolis
Posts: 3,378
Thanks: 2
Thanked 82 Times in 77 Posts
Rep Power: 6

Send a message via Yahoo to BubbleheadMd
Lol..Fordo, stop applying logic to my 40-year old boat.

I recently discovered the plans for my boat and indeed, the cockpit does drain through a thru-hull below the waterline by design. Scary huh?
BubbleheadMd is offline
Quote Quick Reply Share with Facebook
post #4 of 9 Old 12-07-2009
Senior Member

mitiempo's Avatar

Join Date: Sep 2008
Location: Victoria B.C. Canada
Posts: 7,510
Thanks: 0
Thanked 96 Times in 87 Posts
Rep Power: 8

While some cockpit drains do drain above the waterline, most drain below the waterline. Most have valves of some kind on them, but some don't. Some manufacturers have just glassed in tubes to the hull and the bottom of the cockpit well. Do you have drains visible in the cockpit above or near the tube?
A bilge pump should always be above the waterline. Usually on the transon or the side very near the transom. The outboard well would be ok if it drains over the side and is walled off from the rest of the boat. The bilge pump should be fine, but with a 6' head you're probably down by half.

Brian
Living aboard in Victoria Harbour
mitiempo is offline
Quote Quick Reply Share with Facebook
post #5 of 9 Old 12-08-2009 Thread Starter
Chastened

BubbleheadMd's Avatar

Join Date: Nov 2009
Location: Edgewater/Annapolis
Posts: 3,378
Thanks: 2
Thanked 82 Times in 77 Posts
Rep Power: 6

Send a message via Yahoo to BubbleheadMd
The original plans call for the bilge discharge to be T'd to the black cockpit drain hose. I think at some point, several thru-hulls were 'glassed over and the remaining two were replaced. The bilge discharge was run over to the engine well.

The engine well is down low, but the discharge was at or just above the waterline as you recommend. Luckily, the pump isn't pumping UP 6' of head, it's basically horizontal.
BubbleheadMd is offline
Quote Quick Reply Share with Facebook
post #6 of 9 Old 12-08-2009
Junior Member

Join Date: May 2009
Location: Manassas, VA
Posts: 18
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0

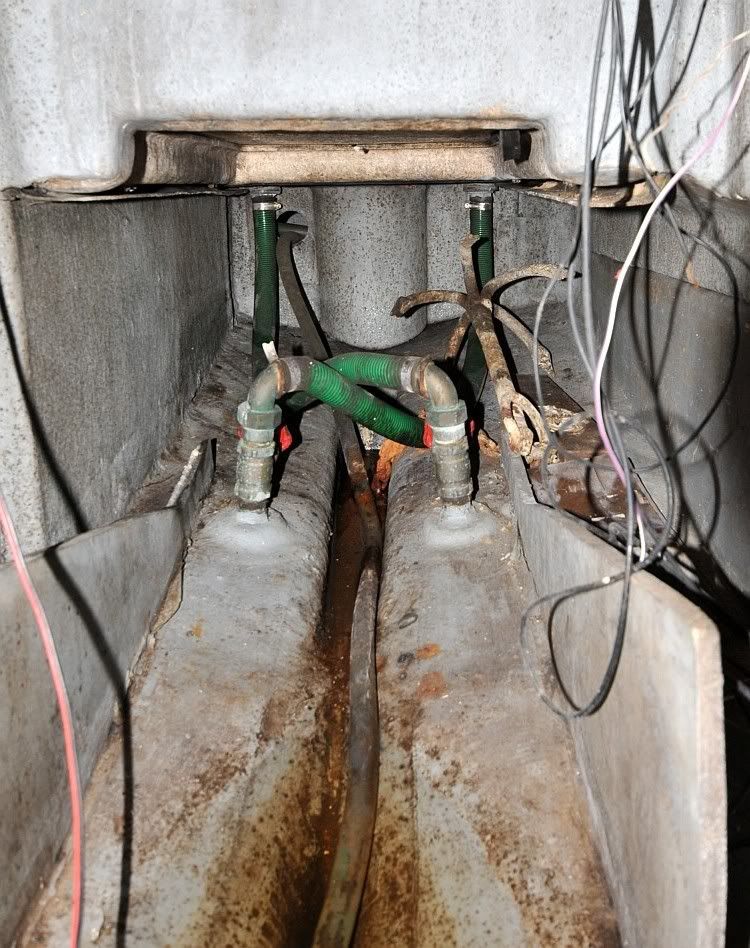

My cockpit drains also go out the bottom of the boat. I was pretty astonished to see that. Here is a photo: (yes, I plan to replace the gate valves, and no, I wasn't the idiot that put a grappling hook anchor in there! And yes, I took it out :-)
