Radar Reflectors

Hi All,

I'm getting a new (used) boat and while the mast is down one of the things I thought about was mounting a radar reflector. Then I started to do some reading and found that 1) most radar reflectors available aren't worth much, and 2) those that work well are really expensive.

I'm considering a Tri-lens standard. Any ideas, thoughts, or suggestions?

Dave
__________________
47*20'11.7" N
122*35'20.8" W
S/V Legacy, Catalina 400 MkII, Hull #328
My Blog on
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message Share with Facebook
  #2
Old 08-14-2010
SVPrairieRose's Avatar
Senior Member

Join Date: Oct 2009
Location: Vancouver BC
Posts: 227
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 6
SVPrairieRose is on a distinguished road
First of all as you know a radar reflector is a must have. Second of all do not feel the need to spend a fortune for some fancy tri lense or other delux reflectors. For 50 or 60 dollars you can get a Davis echomaster, not the economy one for 20 or 30. Mount it high on your backstay or under a spreader and leave it hanging for the next 20 years or so. Three bucks a season, nothing on my boat is that cheap!
Reply With Quote Quick reply to this message Share with Facebook
  #3
Old 08-14-2010
dhays's Avatar
Senior Member

Join Date: Jul 2010
Location: University Place, WA
Posts: 626
Thanks: 0
Thanked 2 Times in 2 Posts
Rep Power: 5
dhays is on a distinguished road
That is what I use now on my boat. After doing a little reading, I find that it isn't very effective even if it is mounted in the proper rain-catcher position. It is cheap, but cheap isn't a bargain if it isn't effective.

Here is a link to a study that the UK Marine Accident Investigation Branch did on radar reflectors after a fatal collision at night.

Dave
__________________
47*20'11.7" N
122*35'20.8" W
S/V Legacy, Catalina 400 MkII, Hull #328
My Blog on
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message Share with Facebook
  #4
Old 08-14-2010
Senior Member

Join Date: Aug 2009
Posts: 208
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 6
CapTim is on a distinguished road
So, other than this quote from the report: "It is recommended that poorly performing radar reflectors are not fitted as it is possible that the user could be lulled into a false sense of security believing that their chances of detection has been enhanced.", what is the down side of having a radar reflector?
__________________
... or I'm wrong.

Living aboard, currently in the Chesapeake
O'Day 37, still new to us
Reply With Quote Quick reply to this message Share with Facebook
  #5
Old 08-14-2010
SVPrairieRose's Avatar
Senior Member

Join Date: Oct 2009
Location: Vancouver BC
Posts: 227
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 6
SVPrairieRose is on a distinguished road
Fantastic report, thanks for posting it!
Reply With Quote Quick reply to this message Share with Facebook
  #6
Old 08-14-2010
southwindphoto's Avatar
Capt Ron

Join Date: Sep 2009
Location: Anastasia Island
Posts: 77
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 6
southwindphoto is on a distinguished road
Great report.. Thanks for posting.

The report did bring up good questions, regarding false returns and radar returns that are bouncing around.

Recent observance
On our trip up from Florida’s Keys to Saint Augustine, while doing my 1 to 4 AM watch, I noticed a big white shinny object approaching from the stern.

Over a two hour period, it got close enough I could tell that it was not only a ship but a very big ship and we were on a similar course. So I contacted them via VHF, to confirm they knew we were there. Much to my delight the Italian accent radio operator on the Carnival Cruise line ship responded immediately, with no problem we’ve had you on radar for hours. We will be making a course change, prior to reaching you to head in to Port Canaveral.

So you should not even see a wake from us. Happy sailing


Which brings me to a question
If a ship radar operator does not see a sailboats aluminum mast sticking 50 feet in the air with an aluminum spreader cross some 35 feet in the air, then how is he going to see a 16 inches reflector?
Reply With Quote Quick reply to this message Share with Facebook
  #7
Old 08-14-2010
Maine Sail's Avatar
Senior Member

Join Date: Jan 2003
Location: Maine Coast
Posts: 5,527
Thanks: 13
Thanked 146 Times in 112 Posts
Rep Power: 15
Maine Sail is just really nice Maine Sail is just really nice Maine Sail is just really nice Maine Sail is just really nice
Quote:
Originally Posted by southwindphoto View Post

Which brings me to a question
If a ship radar operator does not see a sailboats aluminum mast sticking 50 feet in the air with an aluminum spreader cross some 35 feet in the air, then how is he going to see a 16 inches reflector?

Fiberglass boats, masts & spreaders make very poor radar targets. Add heel and sea state into the mix and often times boats can not be seen with many recreational radar equipment.

This is a prime example, look close and you can see a boat under sail with NO reflector.


This is the same boat when it actually did echo a return, most of the time there was no return. She is the teeny tiny return just above the 18 foot spot off my stbd stern. The two boats ahead of me to port & stbd, J Boats, both had radar reflectors.. I also tried to hail this boat on VHF but surprise, surprise he was not monitoring the VHF either...




In my experience in fog, which is thousands of combined hours, I consistently find the Echomaster one of the best performing. I would also say, based on experience, is that ANY reflector, even a Mobri style, is better than none at all..
__________________
______
-Maine Sail / CS-36T


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.




© Images In Posts Property of Compass Marine Inc.



Last edited by Maine Sail; 08-14-2010 at 08:27 AM.
Reply With Quote Quick reply to this message Share with Facebook
  #8
Old 08-14-2010
sailingdog's Avatar
Telstar 28

Join Date: Mar 2006
Location: New England
Posts: 43,290
Thanks: 0
Thanked 11 Times in 11 Posts
Rep Power: 13
sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice sailingdog is just really nice
It has to do with the fact that radar likes hard edges and corners. A mast and spreaders general have neither hard edges or corners, being made to be fairly aerodynamic. A radar reflector, like a Davis Echomaster, has EIGHT good corners and the hard edges where the plates intersect to form those corners.

Quote:
Originally Posted by southwindphoto View Post
Which brings me to a question
If a ship radar operator does not see a sailboats aluminum mast sticking 50 feet in the air with an aluminum spreader cross some 35 feet in the air, then how is he going to see a 16 inches reflector?
__________________
Sailingdog

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Telstar 28
New England

You know what the first rule of sailing is? ...Love. You can learn all the math in the 'verse, but you take
a boat to the sea you don't love, she'll shake you off just as sure as the turning of the worlds. Love keeps
her going when she oughta fall down, tells you she's hurting 'fore she keens. Makes her a home.

—Cpt. Mal Reynolds, Serenity (edited)

If you're new to the Sailnet Forums... please read this
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
.

Still—DON'T READ THAT POST AGAIN.
Reply With Quote Quick reply to this message Share with Facebook
  #9
Old 08-14-2010
CaptainForce's Avatar
Senior Member

Join Date: Jan 2006
Location: living aboard since 1972
Posts: 1,709
Thanks: 0
Thanked 12 Times in 12 Posts
Rep Power: 9
CaptainForce will become famous soon enough
I value the UK Radar Reflector evaluation and yet I will remain presenting my radar image with my simple three planes of aluminum with my "Plastimo" style reflector.

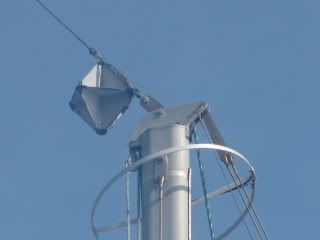

Here, my reflector is mounted on my triatic just forward of my mizzen at about 38' above the water. I commonly see these same reflectors easily visible on my radar when they are mounted on commercial fishing equipment at 4' to 6' above the water. I will not attempt to dispute that other reflectors may have a better test result, but it might be suitable to use a reflector such as mine and ask other boaters to give you feedback about your image on their radar units. I do a lot of New England summer cruising and I'm consistantly well seen on radar screens. Take care and joy, Aythya crew
Reply With Quote Quick reply to this message Share with Facebook
  #10
Old 08-14-2010
Sequitur's Avatar
... a logical conclusion

Join Date: Feb 2007
Location: At Sea
Posts: 430
Thanks: 6
Thanked 0 Times in 0 Posts
Rep Power: 8
Sequitur is on a distinguished road
I am very pleased with the large Luneberg Tri-Lens that I installed 15 metres up Sequitur's mast. This is my second boat with this device, and I have always received positive reports on its visibility. It is very comforting to talk with passing ships that we pick-up on AIS and to confirm that they "see" us both on their AIS and on their radar.

In June on our passage from the Galapagos to Lima, we were contacted by a yacht that had been watching us on their AIS receiver and on their radar. When we told them we could not see them on either our AIS or our radar, they replied that their AIS was a receiver only. They gave us their position, and we intensified our search of the radar screen, but still could not see them. We were on slowly converging courses, and we shortly picked them up visually, and over the next few hours as we came to within three cables of each other, we could plainly see their interlocking pie-tin-type reflector.

The seas were 2 to 3 metres on a slow 4 to 5 metre cross swell, and the motion of their boat seemed to never effectively point their reflector toward us. We never did pick them up on radar. We were a bit concerned that our radar might be duff, but those thoughts were quashed when we picked-up a strong paint on a freighter a few hours later, and then that evening very good paints on the steel-hulled members of the fishing fleet and adequate paints on the wooden ones.

This incident strongly re-inforced my opinion that 'cheapo" pie-plate reflectors are quite useless in anything but flat, calm conditions.
__________________
Cheers,
Michael

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1908 Wildschut Skûtsje

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message Share with Facebook
