Wind Generator placement ???

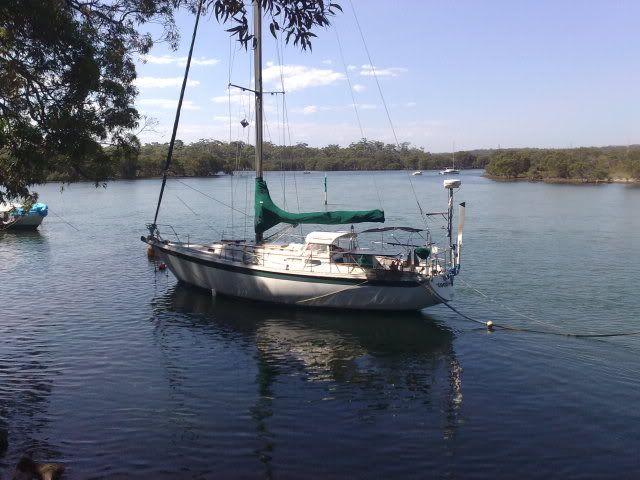

I have my radar mounted at the back of the boat on a pole that is also my o/b motor crane. what I would like to do is mount the wind generator over the radar dome, rather than put a second pole on the port side. Would this cause any problems to the radar, the cable is shielded

[IMG]Photobucket[/IMG]

Simon
Ericson 39B.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

I love my boat
S/V GOODONYA
Brisbane
present location Heading to the Whitsundays

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

DELIVERY SKIPPER
Drinking Rum before 10am makes you a Pirate NOT an alcohlic

Last edited by SimonV; 10-15-2010 at 07:39 AM. Reason: add photo
