Prop shaft reducer/bushing?

I need a new prop on my 36' Pearson. The manual states a 17" dia x 12" pitch. I'm switching from a 2-blade to a 3-blade. I don't have a ton of money to 'invest' in a new prop, and I've found a great deal on aprop of these dimensions, but it has the wrong size boring in the prop.

My prop shaft is 1" diameter, the prop I'm looking at has a 1/25" diameter.

I want to ask you experts what you think about a reducer/bushing to make it fit. I spoke to one person at the local chandlery and she thought it was not uncommon, but might be expensive.

I'm curious if it's safe, what that process is, and what I should expect to spend.

Thanks.
Saileric is offline
Quote Quick Reply Share with Facebook
Sponsored Links
Advertisement

post #2 of 9 Old 12-14-2010
Member

Join Date: Mar 2010
Location: SF - South Bay
Posts: 579
Thanks: 1
Thanked 21 Times in 21 Posts
Rep Power: 6

I'm no expert in this, but I can tell you that my Pearson 323 has a reducer inside the prop. The guy who tuned my prop in the last haul-out said it was very common. Just a simple sleeve with a slot for the key/shear pin - didn't look that expensive, but we are talking about boats here.....I'd chat to a specialist prop company, who can probably give better advice.
paul323 is offline
Quote Quick Reply Share with Facebook
post #3 of 9 Old 12-14-2010
Sailing to surf

Beersmith's Avatar

Join Date: Nov 2008
Location: St. Augustine, FL
Posts: 208
Thanks: 1
Thanked 0 Times in 0 Posts
Rep Power: 7

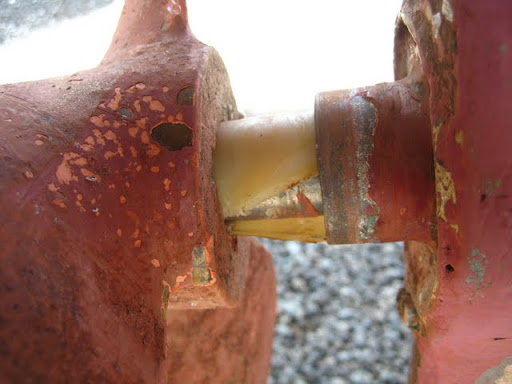

Turns out my prop had a reducer on it made of some sort of plastic. It had broken at some time and caused the prop to be loose on the shaft, with a lot of associated vibration when running. Just a heads up that they might fail eventually. If you sense a ton of new vibration in the engine make sure to check the reducer to see if it stripped:




My boat rebuild/sailing blog:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by Beersmith; 12-14-2010 at 08:26 AM.
Beersmith is offline
Quote Quick Reply Share with Facebook
post #4 of 9 Old 12-14-2010
Member

Join Date: Mar 2010
Location: SF - South Bay
Posts: 579
Thanks: 1
Thanked 21 Times in 21 Posts
Rep Power: 6

Beersmith, could you have a drive sleeve, instead of a reducer? I must admit I have never seen one. but I am told they replace the shear pin/key, in that they hold the propeller snug in normal use, but if you hit something with the prop they are softer than the metal and so break up or slip.

FWIW, my reducer is a simple metal cylinder with a key slot in it. Looked like bronze. 1/25" thick. Stuck out about 1/8" behind the prop.
paul323 is offline
Quote Quick Reply Share with Facebook
post #5 of 9 Old 12-14-2010
Sailing to surf

Beersmith's Avatar

Join Date: Nov 2008
Location: St. Augustine, FL
Posts: 208
Thanks: 1
Thanked 0 Times in 0 Posts
Rep Power: 7

Quote:
Originally Posted by paul323 View Post
Beersmith, could you have a drive sleeve, instead of a reducer? I must admit I have never seen one. but I am told they replace the shear pin/key, in that they hold the propeller snug in normal use, but if you hit something with the prop they are softer than the metal and so break up or slip.

FWIW, my reducer is a simple metal cylinder with a key slot in it. Looked like bronze. 1/25" thick. Stuck out about 1/8" behind the prop.
Not sure honestly. I was wondering how I should replace this and figured there must be a more sturdy solution than the plastic one.

My boat rebuild/sailing blog:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Beersmith is offline
Quote Quick Reply Share with Facebook
post #6 of 9 Old 12-14-2010
I don't discuss my member

Fstbttms's Avatar

Join Date: Feb 2003
Location: Under a boat, in a marina, in the San Francisco Bay
Posts: 2,181
Thanks: 5
Thanked 26 Times in 26 Posts
Rep Power: 13

Quote:
Originally Posted by Beersmith View Post
Not sure honestly. I was wondering how I should replace this and figured there must be a more sturdy solution than the plastic one.
The reducer is typically made of bronze. Not sure if the OP will find one that will take a 1 1/4" bore down to 1" though. Also, it sounds as if the OP is planning to use a 3-blade prop with the same pitch and diameter as his old 2-blade, which (unless I'm mistaken) would not be the correct size.

Last edited by Fstbttms; 12-14-2010 at 10:40 AM.
Fstbttms is offline
Quote Quick Reply Share with Facebook
post #7 of 9 Old 12-14-2010 Thread Starter
Junior Member

Join Date: Dec 2010
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0

Changing to a 3-blade from a 2-blade

Great point on the change from a 3-blade to a 2-blade. My owners manual doesn't actually specify if its a 2 or 3 blade, but the boat has had a 2-blade on it for as long as the paperwork goes back (1978).

The engine is a Yanmar 2QM20. 20 HP. The tachometer is long gone (on The List for replacement), but the printed RPM ratings are:

Continuous Output: 2600
1 Hr Output: 2800
15 min Output: 3000

It's a 36' Pearson, 1978.

Is this enough to figure the math for a 3-blade prop?
Saileric is offline
Quote Quick Reply Share with Facebook
post #8 of 9 Old 12-14-2010 Thread Starter
Junior Member

Join Date: Dec 2010
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0

Prop Size Calculator

For anyone reading this post - I found my own answer. This tool takes the variables that should be at every boat owner's hands (engine and hull manuals), and calculates the prop size and pitch, and gives the option for a 2-blade or a 3-blade propeller calculation. Pitch Calculation.

It looks to be accurate, and I found several prop shops pointing to this page for their calculations.
Saileric is offline
Quote Quick Reply Share with Facebook
post #9 of 9 Old 12-14-2010
Sailing to surf

Beersmith's Avatar

Join Date: Nov 2008
Location: St. Augustine, FL
Posts: 208
Thanks: 1
Thanked 0 Times in 0 Posts
Rep Power: 7

Quote:
Originally Posted by Saileric View Post
For anyone reading this post - I found my own answer. This tool takes the variables that should be at every boat owner's hands (engine and hull manuals), and calculates the prop size and pitch, and gives the option for a 2-blade or a 3-blade propeller calculation. Pitch Calculation.

It looks to be accurate, and I found several prop shops pointing to this page for their calculations.
thanks for that link!

My boat rebuild/sailing blog:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Beersmith is offline
Quote Quick Reply Share with Facebook
