Propeller not fully spinning

Hey guys. Im having an issue with my mariner 5hp engine. The propeller wont turn with any real force, at least not enough to move the boat. the engine will go into gear and the prop shaft will turn but the propeller barely moves at all no matter how much throttle i use. its like its not connected very well to the prop shaft if that makes any sense. Id appreciate any advice

Thanks
Zach
Soundtrackzz is offline
Quote Quick Reply Share with Facebook
Sponsored Links
Advertisement

post #2 of 9 Old 06-29-2012
Senior Member

tommays's Avatar

Join Date: Sep 2008
Posts: 4,296
Thanks: 1
Thanked 30 Times in 30 Posts
Rep Power: 7

Re: Propeller not fully spinning

If its old the prop is driven by a shear pin under the end cone and if its newer there is a rubber hub inside the prop that can fail

1970 Cal 29 Sea Fever

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1981 J24 Tangent 2930
Tommays
Northport NY


If a dirty bottom slows you down what do you think it does to your boat
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
tommays is offline
Quote Quick Reply Share with Facebook
post #3 of 9 Old 06-30-2012
TQA
Bombay Explorer 44

TQA's Avatar

Join Date: Apr 2009
Posts: 2,910
Thanks: 0
Thanked 79 Times in 75 Posts
Rep Power: 7

Re: Propeller not fully spinning

Almost certainly sheared rubber drive. I have fixed this with 3 M 5200 but you really want a replacement prop.
TQA is offline
Quote Quick Reply Share with Facebook
post #4 of 9 Old 06-30-2012
Senior Member

Join Date: Jun 2007
Posts: 2,708
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 10

Re: Propeller not fully spinning

Quote:
Originally Posted by TQA View Post
Almost certainly sheared rubber drive. I have fixed this with 3 M 5200 but you really want a replacement prop.
The Merc props for our powerboat have replaceable hub kits. In fact: If you "spin the hub," as they say in the powerboating world, a new hub kit is what you need. And maybe a prop refurb (BTDT.)

With the engine off and the ignition locked out (so there are no mishaps) I would put the motor in gear and see if I could turn the prop in both directions by hand. If so: It'd be a spun hub.

Jim
SEMIJim is offline
Quote Quick Reply Share with Facebook
post #5 of 9 Old 07-01-2012
Otter

DivingOtter's Avatar

Join Date: May 2012
Location: Toms River NJ
Posts: 183
Thanks: 0
Thanked 1 Time in 1 Post
Rep Power: 4

Re: Propeller not fully spinning

Dont rule out the possibility of the cutless bearing inside the strut needing to be replaced.
DivingOtter is offline
Quote Quick Reply Share with Facebook
post #6 of 9 Old 07-01-2012
Senior Member

Join Date: Jun 2007
Posts: 2,708
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 10

Re: Propeller not fully spinning

Quote:
Originally Posted by DivingOtter View Post
Dont rule out the possibility of the cutless bearing inside the strut needing to be replaced.
Cutlass bearing? Strut? On a 5HP outboard motor?

Jim
SEMIJim is offline
Quote Quick Reply Share with Facebook
post #7 of 9 Old 07-01-2012
Senior Member

Join Date: Jun 2012
Location: Chesapeake
Posts: 140
Thanks: 0
Thanked 4 Times in 4 Posts
Rep Power: 4

Re: Propeller not fully spinning

When in gear, only turn the prop by hand in the direction it will turn when running in gear. Otherwise you may damage water pump fins. They're a pretty tight fit and can break off on an older pump. This one should only be turned counterclockwise:

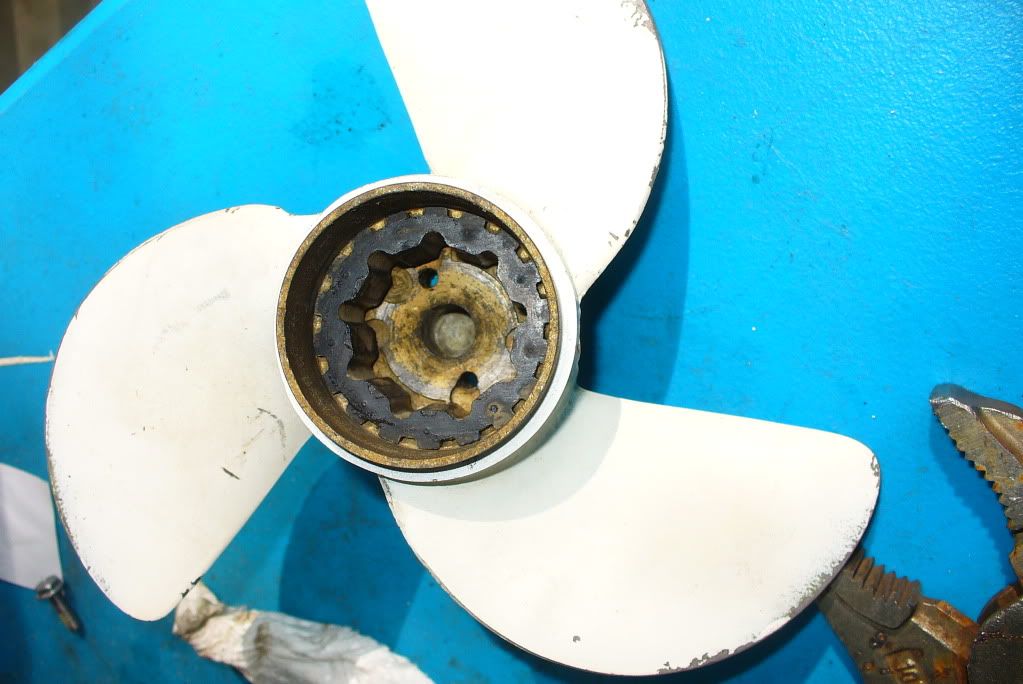

On a Johnson, the prop spinning could be the rubber clutch (called spun hub), or a shear pin breakage. The shear pin would make it so spins really easy whereas the spun hub would usually offer some friction. Here's a look at the rubber clutch on mine:

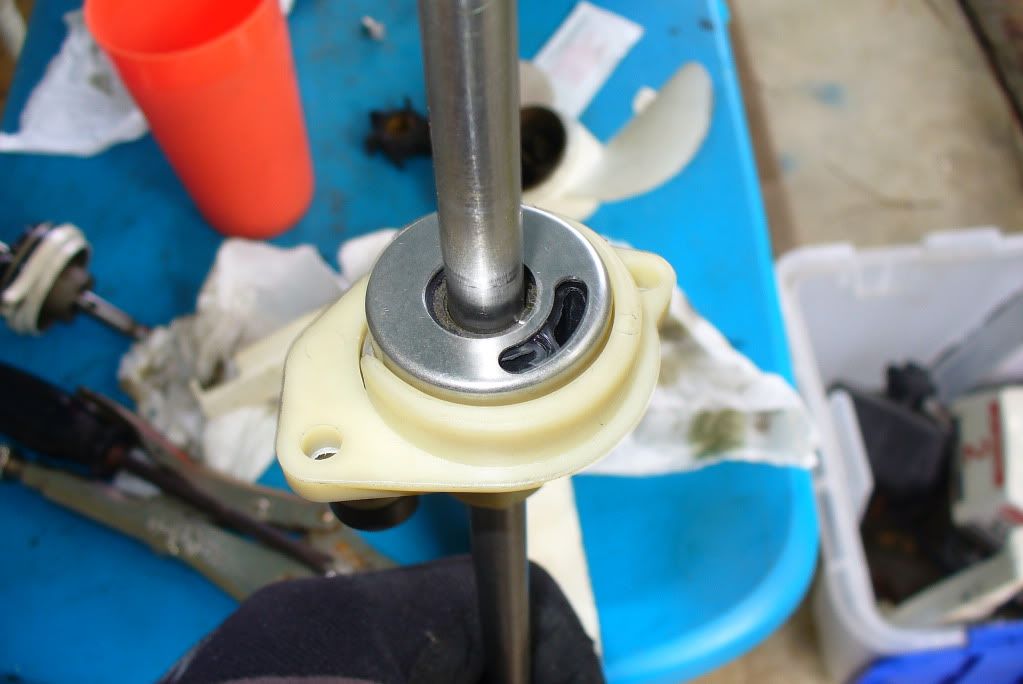

and the white plastic teeth it engages with when mounted:
Sea Dawg is offline
Quote Quick Reply Share with Facebook
post #8 of 9 Old 07-01-2012
Senior Member

Join Date: May 2012
Location: Lund British Columbia
Posts: 136
Thanks: 0
Thanked 3 Times in 3 Posts
Rep Power: 4

Re: Propeller not fully spinning

Nice presentation Sea Dawg...
Bob142 is offline
Quote Quick Reply Share with Facebook
post #9 of 9 Old 07-01-2012
Otter

DivingOtter's Avatar

Join Date: May 2012
Location: Toms River NJ
Posts: 183
Thanks: 0
Thanked 1 Time in 1 Post
Rep Power: 4

Re: Propeller not fully spinning

Sorry. I didnt see it was an outboard.
