Life Lines? West marine and crimp?

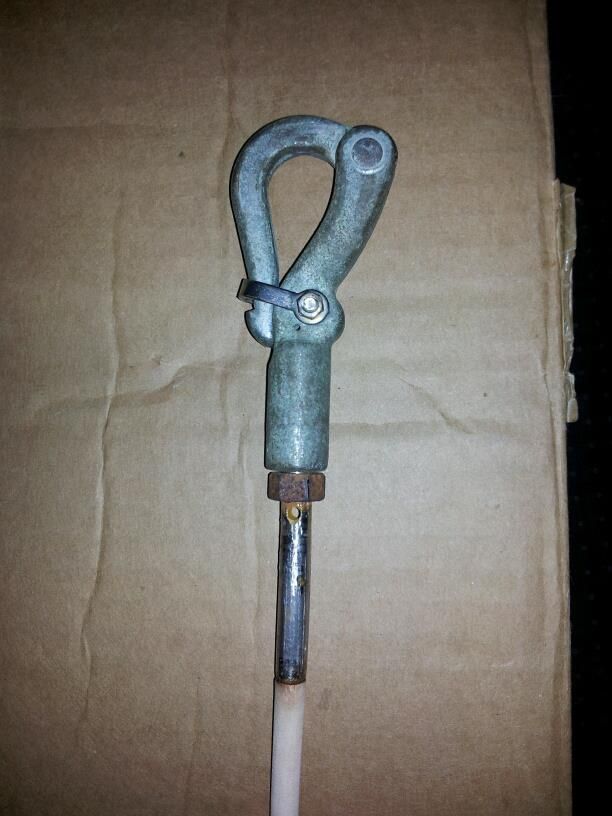

I have pulled the life lines with the vinyl cover off the boat. I want to go with SS 3/16" 7X19 but where should I have them made? West Marine? Should I buy the cable from West Marine and use the crimp style ends? My pelican hooks look to be in good condition. the photos below were taken with my phone. See if you can tell what I have and if the end can be re-used. Thanks again for your help in advance.


[IMG]Photobucket[/IMG]

And the other end is

Photobucket
Reply With Quote Share with Facebook
  #2
Old 01-13-2013
Senior Member

Join Date: Feb 2011
Location: San Francisco Bay area
Posts: 2,130
Thanks: 1
Thanked 30 Times in 30 Posts
Rep Power: 4
MarkSF is on a distinguished road
Re: Life Lines? West marine and crimp?

My local rigger just finished making mine.

I decided that lifelines were a bad place to start experimenting with doing my own crimping, so wanted an experienced rigger to make them.

Your options would seem to be :

1) Get a local rigger to make them (that includes West Marine's rigger)

2) Send them to someone like riggingonly.com

3) Make them yourself out of dyneema

4) Make them yourself out of a swageless system
__________________
1984 Bristol 31.1
Alameda, California, USA
Reply With Quote Share with Facebook
  #3
Old 01-13-2013
PorFin's Avatar
Señor Member

Join Date: Sep 2007
Posts: 1,340
Thanks: 1
Thanked 8 Times in 8 Posts
Rep Power: 7
PorFin is on a distinguished road
Re: Life Lines? West marine and crimp?

It,

I'd send a PM to knothead -- he's a crackerjack rigger, and he can give you the best advice of anyone around here. He's the SS of SSMR Rigging, located in St Pete/Tampa Bay. He does great work.

Speaking of knotty -- anyone seen or heard from him lately? I just realized I haven't, at least not here.
jrd22 likes this.
__________________

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
________
'85 BYB Vagabond 39
Reply With Quote Share with Facebook
  #4
Old 01-13-2013
Sabreman's Avatar
Senior Member

Join Date: Sep 2006
Location: Yeocomico River, VA
Posts: 1,573
Thanks: 2
Thanked 14 Times in 11 Posts
Rep Power: 9
Sabreman will become famous soon enough Sabreman will become famous soon enough
Re: Life Lines? West marine and crimp?

The pelican hooks are dead. They're also inherently the weakest point in the rig so it's a no brainer. Replace everything including turnbuckles. Go with uncoated wire. In your photos, who ever did them, did a bad job - the vinyl never goes all the way the the swage - there should be a 1/8" gap. Do not do it yourself - this is an area where you should not try to save money.

I used riggingonly.com. They're great and fairly priced. Send them old ones and a week or two later shiny new ones will arrive.
__________________
Sabre 38 "Victoria"
Reply With Quote Share with Facebook
  #5
Old 01-13-2013
jrd22's Avatar
Courtney the Dancer

Join Date: Nov 2000
Location: San Juan Islands., WA, USA
Posts: 3,813
Thanks: 3
Thanked 14 Times in 14 Posts
Rep Power: 14
jrd22 will become famous soon enough
Re: Life Lines? West marine and crimp?

I'll second Knothead. He did ours and the price was extremely reasonable and top quality.
I sent him the old ones in a flat rate postal box and a week later I had the new ones. They fit perfectly.
__________________
John
SV Laurie Anne

1988 Brewer 40 Pilothouse

Reply With Quote Share with Facebook
  #6
Old 01-14-2013
Senior Member

Join Date: Dec 2006
Location: Beacon, NY
Posts: 1,903
Thanks: 13
Thanked 60 Times in 58 Posts
Rep Power: 8
miatapaul is on a distinguished road
Re: Life Lines? West marine and crimp?

You have basically 3 options:
  • Get new ones made up with either coated or un-coated, you cannot reuse swage fittings. No way to swage fittings yourself unless you have a very expensive machine, even then I would not do it.
  • Get a kit that uses swageless fittings, coated or un-coated, likely a bit more than above but the fittings are reusable so you will save money when you replace the wire in 20 years. But will you own the boat that long?
  • Use Dyneema to make your own, cheapest, don't last nearly as long, but fittings can be reused when the Dyneema needs to be replaced. Stays cheapest, and lots of people like the softer feel of the Dyneema and it is lighter if that is important to you.

Last edited by miatapaul; 01-14-2013 at 12:02 PM.
Reply With Quote Share with Facebook
  #7
Old 01-14-2013
Senior Member

Join Date: Feb 2011
Location: San Francisco Bay area
Posts: 2,130
Thanks: 1
Thanked 30 Times in 30 Posts
Rep Power: 4
MarkSF is on a distinguished road
Re: Life Lines? West marine and crimp?

Well I just checked my quote for the lifelines (31ft boat, double lifelines, in 3/16" 316 stainless wire, 2 gates, all new fittings including the gates) - it was about $650 for materials and 4 hours (approx) labour. That's with a rigger doing everything, including removal and installation - sounded very reasonable to me.
__________________
1984 Bristol 31.1
Alameda, California, USA

Last edited by MarkSF; 01-14-2013 at 12:55 PM.
Reply With Quote Share with Facebook
  #8
Old 01-14-2013
Senior Member

Join Date: Dec 2006
Location: Beacon, NY
Posts: 1,903
Thanks: 13
Thanked 60 Times in 58 Posts
Rep Power: 8
miatapaul is on a distinguished road
Re: Life Lines? West marine and crimp?

Quote:
Originally Posted by MarkSF View Post
Well I just checked my quote for the lifelines (31ft boat, double lifelines, in 3/16" 316 stainless wire, 2 gates, all new fittings including the gates) - it was about $650 for materials and 4 hours (approx) labour. That's with a rigger doing everything, including removal and installation - sounded very reasonable to me.
that sounds very reasonable, much less than I have seen in my research on boat purchase. The Suncor swageless setup is 260, to 320 a line.

Last edited by miatapaul; 01-14-2013 at 01:57 PM.
Reply With Quote Share with Facebook
  #9
Old 01-14-2013
First String

Join Date: Jan 2009
Location: South carolina
Posts: 786
Thanks: 39
Thanked 6 Times in 6 Posts
Rep Power: 6
ltgoshen is on a distinguished road
Re: Life Lines? West marine and crimp?

went to west marine today. They want me to send the lifelines to their rigger in RockHil,SC. West marine rigging 860 Marlin Drive. He said he can build them in 3/16 stainless steel with new pelican hooks and a turnbuckle. Keep in mind there is no step through .He said maybe $100.00 cheaper if we use my old pelican hooks. only problem, He sail 2 weeks to get back. Or I could measure mine and he could build and have the deliver ups in 3 to for days. So Around 400 completed with shipping. The older I get the cheaper I get. ..
Reply With Quote Share with Facebook
  #10
Old 01-14-2013
Senior Member

Join Date: Feb 2012
Location: New Orleans Louisiana
Posts: 1,790
Thanks: 6
Thanked 41 Times in 39 Posts
Rep Power: 3
Stumble is on a distinguished road
Re: Life Lines? West marine and crimp?

I would highly recommend going to dyneema. Figure $200 and some splices.
__________________
Greg Rubin
Attorney
Reply With Quote Share with Facebook
