  #11
Old 02-05-2013
PCP's Avatar
PCP PCP is offline
Senior Member

Join Date: Dec 2004
Location: Portugal, West Coast
Posts: 16,201
Thanks: 21
Thanked 98 Times in 81 Posts
Rep Power: 10
PCP will become famous soon enough
Re: Boom rise with reefing... How much?

Quote:
Originally Posted by MedSailor View Post
Hmmm.... Good point. I don't have a boom jack, but I do have a topping lift that I rarely adjust. When I put a reef in I have to let out a bunch of mainsheet and then as I pull the reefing line in the end of the boom lifts up to meet the new clew.
The only reason I can see the boom raising to meet the new clew is if there is not enough sail down aft. You have a two line system? If it is a single line It can be that the system is not balanced regarding the amount of sail aft and forward.

On boats without a boom-jack strong enough I use a top lifting not to let the boom too much down and then for the final stage I do the fine adjustment bringing the boom down (with the mainsheet) while I let go bit by bit a little more reef line till I have the boom on the correct position and a sail with a good shape. That way is the boom that is pulling the clew and not otherwise. I always reef with the boat near the wind. But I guess this depends on the boat and system

Regards

Paulo
Reply With Quote Quick reply to this message Share with Facebook
  #12
Old 02-05-2013
Senior Member

Join Date: Dec 2008
Posts: 669
Thanks: 1
Thanked 2 Times in 2 Posts
Rep Power: 6
lancelot9898 is on a distinguished road
Re: Boom rise with reefing... How much?

Is this a new sail? I suspect that the reef cringles on the leech were installed a little higher than their corresponding points on the luff. When I had a new mainsail made giving the exact dimensions of the old main, the new came in slightly different such that when installed the boom was no longer pararell to the deck but had a slight rise from the horizonal. Forturnuily the reef points did not cause the boom to rise anymore when the first and second reefs were put in. Not sure as to effects on performance.
Reply With Quote Quick reply to this message Share with Facebook
  #13
Old 02-05-2013
Senior Member

Join Date: Feb 2011
Location: San Francisco Bay area
Posts: 2,278
Thanks: 2
Thanked 44 Times in 44 Posts
Rep Power: 4
MarkSF is on a distinguished road
Re: Boom rise with reefing... How much?

My attitude is this :

When you reef, you lower the centre of effort of the sail, a lot. Therefore, it's OK to allow it to rise again just a little bit by having the boom higher. It's less likely to hit you on the head, to catch in the water, everyone's a winner!
__________________
1984 Bristol 31.1
Alameda, California, USA
Reply With Quote Quick reply to this message Share with Facebook
  #14
Old 02-06-2013
RichH's Avatar
Senior Member

Join Date: Jul 2000
Location: Pennsylvania
Posts: 2,929
Thanks: 9
Thanked 78 Times in 71 Posts
Rep Power: 15
RichH will become famous soon enough
Re: Boom rise with reefing... How much?

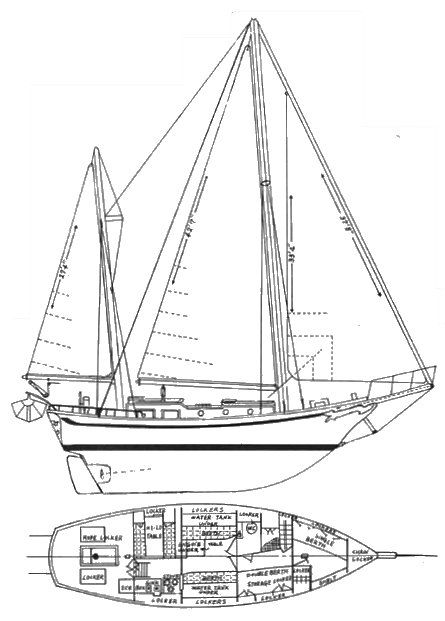

The Bill Garden design Formosa 41 originally had quite a radically raked mainmast ... looks like up to 7 degrees of rake on the 'spec'. drawings. Many of such radically mast raked boats from that era now usually have their masts 'straight up' for 'sail/helm balance' considerations ... and if now carried more 'straight-up' will radically/directly change the boom angle.

So first, the pregnant question becomes, how much rake do you normally carry in that main mast? That approx. rake angle will be needed before I can give a reasonable 'guestimate' reply and one based on generalized 'sailmakers data' for the F41.

Id need to know the construction of the mainsail ....
.... woven dacron sail cloth?
.... does this sail have a luff bolt rope (a three strand dacron rope inside a 'sleeve' at the luff?
could even be that there is an 'exposed' three strand 'rope' sewn directly to the luff ... yes/no?
.... What is the luff length of the sail (my data book omits the F41)?
.... How old (yrs.) is this sail?
.... and how much 'extra strain' do you add to the mainsail luff when 'raising' this (dacron?) mainsail?
.... if you don't 'stretch out' that bolt rope, explain briefly how you raise that mainsail.

Two things possibly going on here that I can 'guesstimate'; but, I would need some/most of those questions answered before giving my 'best guess'.
If this sail is a bolt-roped woven dacron sail, and is more than about about 3-5 years old and the sail has seen a LOT of use .... probably its not the angles that the reef positions are making but rather your boltrope in that mainsail 'may' be grossly shrunken, the luff length is now MUCH shorter than when 'new' and as a result the boom 'may' be drooping at the aft end, giving the appearance of being 'normal'; BUT, if the mast is no longer raked to the OEM design the boom may be giving a 'visual' cancellation, etc.
This is quite complex; but, the amount of rake in that mast is the key here on what is exactly happening - as you SEE it ..... Plus 'how much strain' you are adding to the halyard .... AFTER that sail is 'just up' when raising.

My first suspicion is that your mainsail luff has shrunken over time (quite common on aged boltroped sails) and the dissimilar shrinkage of that bolt rope is the reason for the apparent different 'visual' angles you see when 'full up' or when reefed. When raising this mainsail you probably winch the halyard so that the sail is 'just up'? correct?

:-)

Last edited by RichH; 02-06-2013 at 11:02 AM.
Reply With Quote Quick reply to this message Share with Facebook
  #15
Old 02-06-2013
fallard's Avatar
Senior Member

Join Date: Nov 2009
Location: Mystic
Posts: 901
Thanks: 0
Thanked 8 Times in 7 Posts
Rep Power: 5
fallard is on a distinguished road
Re: Boom rise with reefing... How much?

Quote:
Originally Posted by MedSailor View Post
Hmmm.... Good point. I don't have a boom jack, but I do have a topping lift that I rarely adjust. When I put a reef in I have to let out a bunch of mainsheet and then as I pull the reefing line in the end of the boom lifts up to meet the new clew.

Then, when I shake out the reef I let the reefing line out slowly and the boom comes back down. Were I to loose control of that line it would "fall" back down to horizontal where the topping lift would catch it.

Perhaps I should phrase my question differently:

Is there any reason that I shouldn't just have the sail built so that the boom stays level with each reef?

MedSailor
You didn't mention easing the main halyard to allow the reef tack to come down to the boom as you haul in on the reefing line(s). If you have jiffy reefing or single line reefing, this would explain why your boom is pointing to the sky.

So, the question is: are you bringing the reef tack down to the boom when you reef?
Reply With Quote Quick reply to this message Share with Facebook
  #16
Old 02-06-2013
Large Member

Join Date: May 2007
Location: Texas
Posts: 1,000
Thanks: 0
Thanked 1 Time in 1 Post
Rep Power: 8
mdbee is on a distinguished road
Re: Boom rise with reefing... How much?

Reply With Quote Quick reply to this message Share with Facebook
  #17
Old 02-06-2013
MedSailor's Avatar
Closet Powerboater

Join Date: Mar 2008
Location: Anacortes PNW
Posts: 2,911
Thanks: 159
Thanked 66 Times in 58 Posts
Rep Power: 7
MedSailor is on a distinguished road
Re: Boom rise with reefing... How much?

Quote:
Originally Posted by RichH View Post

So first, the pregnant question becomes, how much rake do you normally carry in that main mast? That approx. rake angle will be needed before I can give a reasonable 'guestimate' reply and one based on generalized 'sailmakers data' for the F41.
Not exactly sure how to measure rake to be honest, but I got a lot! Weather helm and balance be damned, it sure looks cool! I'd say my rake is in line with the line drawings, so lets call it 7 degrees

Quote:
Originally Posted by RichH View Post
Id need to know the construction of the mainsail ....
.... woven dacron sail cloth?
It's a lee sails sail, so yeah it's dacron-ish.

Quote:
Originally Posted by RichH View Post
.... does this sail have a luff bolt rope (a three strand dacron rope inside a 'sleeve' at the luff?
could even be that there is an 'exposed' three strand 'rope' sewn directly to the luff ... yes/no?
The sail does have an exposed 3-strand bolt rope sewn on the luff but it also has sail slides that go into an internal track.

Quote:
Originally Posted by RichH View Post
.... What is the luff length of the sail (my data book omits the F41)?
I=47 J=16 P=42 E=17 PY=24 EY=11
One caveat here is that my masts are aftermarket aluminum spars made by Spartech if I recall. The mizzen has different stay/shroud arrangements than standard and I don't honestly know if they're taller/shorter than stock. They "look" to be the same as other formosas and I don't think they're off the standard measurements by much if any.

Quote:
Originally Posted by RichH View Post
.... How old (yrs.) is this sail?
Really old methinks. It was blown out and baggy when I bought the boat in 2007 and it had been for sale for 2 years. Previous owner sailed San-Diego to Alaska and PNW often.

Quote:
Originally Posted by RichH View Post
.... and how much 'extra strain' do you add to the mainsail luff when 'raising' this (dacron?) mainsail?
.... if you don't 'stretch out' that bolt rope, explain briefly how you raise that mainsail.
Well I used to "just raise" it but after reading an excelent treatise of yours on "how to hoist an old mainsail" I now raise the sail as follows:
1: hoist sail until halyard is at the top of the mast and the luff has no wrinkles.
2: take a few extra turns on the halyard winch and continue to crank until one of three things happens:
1. I get a new hernia.
2. I break something expensive.
3. I pop a blood vessel in my eye.

Having said that, the reefing I did that caused the boom (which is level when the main is hoisted without reefs) to rise with reefing was back when I was "just" hoisting the mainsail without the extra cranking.


I'll be at the boat this weekend for pictures, since y'all have asked. Assuming it's not blowing hard at the slip I'll post what happens with the reefs. Any particular photo requests that would help in figuring out what is going on here??

MedSailor
__________________

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


I have a sauna on my boat, therefore I win.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message Share with Facebook
  #18
Old 02-06-2013
MedSailor's Avatar
Closet Powerboater

Join Date: Mar 2008
Location: Anacortes PNW
Posts: 2,911
Thanks: 159
Thanked 66 Times in 58 Posts
Rep Power: 7
MedSailor is on a distinguished road
Re: Boom rise with reefing... How much?

Quote:
Originally Posted by fallard View Post
You didn't mention easing the main halyard to allow the reef tack to come down to the boom as you haul in on the reefing line(s). If you have jiffy reefing or single line reefing, this would explain why your boom is pointing to the sky.

So, the question is: are you bringing the reef tack down to the boom when you reef?
Here is how I reef.

1. Head into wind.
2. Release mainsheet
3. Lower halyard (topping lift supports boom)
4. Attach tack hook at gooseneck to new reef tack on sail at first reef

5. Crank in on jiffy reefing line until first reef clew meets boom (boom rises)
6. Raise halyard to take out slack

7. Bring in mainsheet
8. Resume course and trim appropriately

I put 5 & 6 separate because now that I think of it, I can't remember for sure which one of those I do before the other.... I'll have to go reef at the dock this weekend.

MedSailor
__________________

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


I have a sauna on my boat, therefore I win.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message Share with Facebook
  #19
Old 02-06-2013
Faster's Avatar
Just another Moderator

Join Date: Sep 2005
Location: New Westminster, BC
Posts: 15,149
Thanks: 83
Thanked 233 Times in 225 Posts
Rep Power: 10
Faster has a spectacular aura about Faster has a spectacular aura about Faster has a spectacular aura about
Re: Boom rise with reefing... How much?

Looks like the right sequence... don't really think it matters whether you do 5 then 6 or vice versa.

The only way your boom can rise as described, really, is that the line from the reef tack to the reef clew is not parallel to the foot of the sail... So it is what it is. If you feel it's 'odd' or wrong or you don't need it, have the new sail made differently.
__________________
Ron

1984 Fast/Nicholson 345 "FastForward"

".. there is much you could do at sea with common sense.. and very little you could do without it.."
Capt G E Ericson (from "The Cruel Sea" by Nicholas Monsarrat)
Reply With Quote Quick reply to this message Share with Facebook
  #20
Old 02-07-2013
Senior Member

Join Date: Dec 2008
Posts: 669
Thanks: 1
Thanked 2 Times in 2 Posts
Rep Power: 6
lancelot9898 is on a distinguished road
Re: Boom rise with reefing... How much?

I always thought that you wanted to do Step 6 before 5 because of the stress that would be put on the sail slugs if you did it the other way.
Reply With Quote Quick reply to this message Share with Facebook
