Starboard grab rails

I am considering replacing the badly weathered teak grab rails on my deck with starboard ones. The current ones are leaking(I swear every time I turn around something else is leaking). I am wondering if anyone has any pictures of 30ish foot boats with non-wood rails so I can see how they look? Also is there a good place to get them prefabbed cheaper than having the plastic guy make me some?
__________________
--

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
30' Islander Bahama
Reply With Quote Quick reply to this message Share with Facebook
  #2
Old 07-26-2009
Senior Member

Join Date: Jul 2008
Location: chesapeake bay
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 7
scottyt is on a distinguished road
it would not take much to remove and sand the ones you have, the rebed them with butyl tape. if you take them off the boat it wont take much to copy them new wood if you wanted new wood. i would go with stainless over starboard
Reply With Quote Quick reply to this message Share with Facebook
  #3
Old 07-26-2009
Junior Member

Join Date: Jul 2009
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
bridgeway11 is on a distinguished road
i agree stainless may be your best bet
Reply With Quote Quick reply to this message Share with Facebook
  #4
Old 07-26-2009
patrickrea's Avatar
Senior Member

Join Date: Aug 2007
Location: Toronto
Posts: 407
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 8
patrickrea is on a distinguished road
Starboard is not a structural material and will break easily when used as a grabrail. Refurbishing and rebedding the teak would solve the leaking. Stainless would be my way to to go for aesthetics and structure.
__________________
Patrick Rea

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1978 30' Hughes Northstar 1000
1964 20' Bertram Moppie
Reply With Quote Quick reply to this message Share with Facebook
  #5
Old 07-26-2009
CaptainForce's Avatar
Senior Member

Join Date: Jan 2006
Location: living aboard since 1972
Posts: 1,709
Thanks: 0
Thanked 12 Times in 12 Posts
Rep Power: 9
CaptainForce will become famous soon enough
"Starboard is not a structural material...it will break easily",- I think this depends on how it's used. Certainly it is a structural material. Grab a span of the length you intend to use and attempt to break it. Yes, it is not as resiliant as wood, but it can function well as a grab rail as it has on my vessel for fifteen years. Don't expect to have it function well with delicate or long spans. PatrickRea is right that it "can" break, but not that it "will break",- just be wise with your application. Also, when bedding starboard, don't rely on the seal formed by anything adhering to the starboard. My grab rails and other teak replaced trim are black starboard. 'take care and joy, Aythya crew
Reply With Quote Quick reply to this message Share with Facebook
  #6
Old 07-26-2009
bobmcgov's Avatar
baDumbumbum

Join Date: Jul 2007
Location: Windy Wyoming
Posts: 1,073
Thanks: 0
Thanked 28 Times in 27 Posts
Rep Power: 8
bobmcgov will become famous soon enough

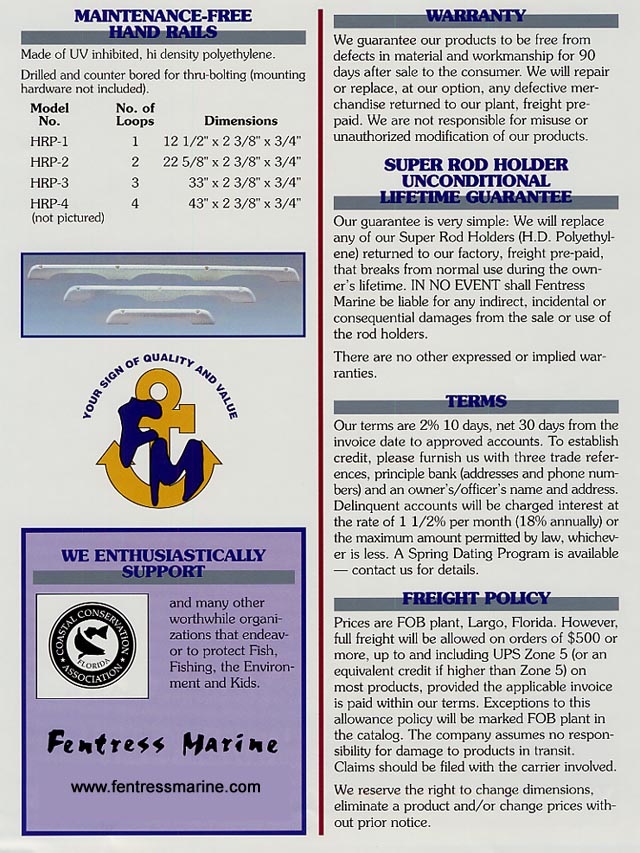

Google Fentress Marine. Thusly:

http://www.fentressmarine.com/images/ibcover.jpg

They may not still exist, tho.

Jamestown Distributors sells poly rails:

White Poly Handrails

(I'm also in the market but may go stainless so we can lash blocks to them in an emergency.)
__________________
Buccaneer18, Grainnia
SJ21, Diarmuid
Albin Ballad 30, Fionn
Reply With Quote Quick reply to this message Share with Facebook
  #7
Old 07-27-2009
huguley3's Avatar
Member

Join Date: May 2007
Location: Stuart FL
Posts: 236
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 8
huguley3 is on a distinguished road
Never really considered stainless I will have to look into that. Though I was looking at the plastic types because they don't require maintenance beyond cleaning. Steel would be yet another thing to polish. The ones that are on there are in pretty bad shape and if I took them off and sanded them down to the good wood I don't think there would be enough left to clean food out of your teeth. All the exterior wood is pretty weathered. Some of it is in good enough shape that I could sand it down to where its good but I am looking for something that will not require as much upkeep. I can handle polishing a bit more steel but I don't really like the mess that the wood makes.

I was talking with the guy who did my plexi windows and he can use my old parts as a template to make replacements in starboard or some other type of plastic.

I am a bit concerned with how it will look though as if I get it in white the boat will lose some of the lines that give it character. If I get the parts in a brown or tan color it may look kind of cheesy especially up close. So I was kind of hoping someone would have some pictures that had it done.

I googled for the steel rails and they would look pretty sharp. None of the places had any prices though so I am thinking they are pretty spendy items. My current rails are 102" long and have 10 loops. I could cope with 96" as that is the biggest most seem to make before going custom.
__________________
--

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
30' Islander Bahama
Reply With Quote Quick reply to this message Share with Facebook
  #8
Old 07-27-2009
jbrumberg's Avatar
Junior Member

Join Date: Jul 2009
Location: Western Massachusetts
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
jbrumberg is on a distinguished road
I replaced my teak grabrails with "poly's". My boat did lose quite a bit of its aesthetic appeal. The "effect" is enhanced due to the small size of my ~18' sailboat Jay
__________________
Newport 17, Old Town Canoe "Otter"
Reply With Quote Quick reply to this message Share with Facebook
  #9
Old 07-27-2009
timebandit's Avatar
Senior Member

Join Date: Sep 2002
Posts: 928
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 13
timebandit is on a distinguished road
I made these out of fake decking material a couple of years ago.

__________________
Rick
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Mac 25
Copernicus
Southern California
I am not a prejudice racist sexist bigot. I just hate stupid people.
Reply With Quote Quick reply to this message Share with Facebook
  #10
Old 07-27-2009
Senior Member

Join Date: Nov 2005
Location: Milton, DE
Posts: 593
Thanks: 2
Thanked 7 Times in 7 Posts
Rep Power: 10
Flybyknight is on a distinguished road
Starboard is polyethylene.
1) It will turn yellow in time when exposed to the sun.
and
2)It's slippery which raises the question of grip.

What I do is coat all my bare wood with epoxy to eliminate
moisture swelling, then varnish. That adds years between need
to refinish.

Dick
