Backing plates

I am confused (a normal state) - does it make sense to use a 1/2" or 3/4" piece of marine plywood for a backing plate as opposed to using a 1/8" piece of cold rolled steel dipped in epoxy paint? If/when water leaks - one turns to goo and one rusts ...

Thanks - Charles
Reply With Quote Share with Facebook
  #2
Old 11-13-2010
tommays's Avatar
Senior Member

Join Date: Sep 2008
Posts: 4,245
Thanks: 1
Thanked 25 Times in 25 Posts
Rep Power: 7
tommays will become famous soon enough




I use stainless as i get it more or less free

BUT if you use the correct sealing method it will NOT leak

Bedding Deck Hardware With Butyl Tape
__________________
1970 Cal 29 Sea Fever

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1981 J24 Tangent 2930
Tommays
Northport NY


If a dirty bottom slows you down what do you think it does to your boat
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Share with Facebook
  #3
Old 11-13-2010
PorFin's Avatar
Señor Member

Join Date: Sep 2007
Posts: 1,340
Thanks: 1
Thanked 8 Times in 8 Posts
Rep Power: 8
PorFin is on a distinguished road
Quote:
Originally Posted by micheck View Post
I am confused (a normal state) - does it make sense to use a 1/2" or 3/4" piece of marine plywood for a backing plate as opposed to using a 1/8" piece of cold rolled steel dipped in epoxy paint? If/when water leaks - one turns to goo and one rusts ...

Thanks - Charles
Charles,

What are you mounting? Depending on the load you can anticipate on the fastener, you may be able to use fender washers.

Given the choices you've left to us, I'd go with the plywood (after sealing it WELL with epoxy.)

However, if the choices were mine I'd go with stainless first. If that's not available then I'd go with aluminum. Neither of these will rot or rust. If you use aluminum as long as you use an isolator like TefGel or a good sealant then you won't need to worry much about galvanic corrosion between the stainless fasteners and the backing plate.
Reply With Quote Share with Facebook
  #4
Old 11-13-2010
bljones's Avatar
Senior Member

Join Date: Oct 2008
Location: South Coast Ontario
Posts: 8,150
Thanks: 32
Thanked 71 Times in 64 Posts
Rep Power: 7
bljones has a spectacular aura about bljones has a spectacular aura about
go stainless.
If you have one of these nearby,
METAL SUPERMARKETS - Buy Metal Online - Small Quantity Orders for Aluminum, Stainless Steel, Hot Rolled Steel, Cold Rolled Steel for Delivery or Local Pickup
you will be shocked by how cheap offcuts of stainless (sutiable for backing plates) can be.
Reply With Quote Share with Facebook
  #5
Old 11-13-2010
pdqaltair's Avatar
Senior Member

Join Date: Nov 2008
Location: Deale, MD
Posts: 2,188
Thanks: 1
Thanked 31 Times in 31 Posts
Rep Power: 6
pdqaltair is on a distinguished road
Pre-laminated FRP (fiberglass) also works VERY well, with few of the drawbacks of Al or SS:
* no galvanic corrosion
* easy to work, compared to SS
* light

If your looking for cheap, try to find scrap. Most FRP repair shops will have broken bits you can salvage.

I wouldn't real consider either carbon steel or plywood, when there are other easy choices.
__________________
(when asked how he reached the starting holds on a difficult rock climbing problem that clearly favored taller climbers - he was perhaps 5'5")

"Well, I just climb up to them."

by Joe Brown, English rock climber




To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Share with Facebook
  #6
Old 11-13-2010
Faster's Avatar
Just another Moderator

Join Date: Sep 2005
Location: New Westminster, BC
Posts: 14,689
Thanks: 68
Thanked 195 Times in 187 Posts
Rep Power: 10
Faster has a spectacular aura about Faster has a spectacular aura about Faster has a spectacular aura about
If you have an old window/piece of glass laying around it's a pretty simple matter to lay up your own fiberglass panels for backing.. any shape/thickness you want, as as pdq said it's a lot easier to 'work' , trim and custom fit. Do go with large washers as well, though, if you go that route.
__________________
Ron

1984 Fast/Nicholson 345 "FastForward"

".. there is much you could do at sea with common sense.. and very little you could do without it.."
Capt G E Ericson (from "The Cruel Sea" by Nicholas Monsarrat)
Reply With Quote Share with Facebook
  #7
Old 11-13-2010
PorFin's Avatar
Señor Member

Join Date: Sep 2007
Posts: 1,340
Thanks: 1
Thanked 8 Times in 8 Posts
Rep Power: 8
PorFin is on a distinguished road
Quote:
Originally Posted by Faster View Post
If you have an old window/piece of glass laying around it's a pretty simple matter to lay up your own fiberglass panels for backing.. any shape/thickness you want, as as pdq said it's a lot easier to 'work' , trim and custom fit. Do go with large washers as well, though, if you go that route.
Doh! I forgot that option -- also a very good one!
Reply With Quote Share with Facebook
  #8
Old 11-14-2010
Member

Join Date: Nov 2010
Location: Anacortes, WA
Posts: 31
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
LeftCoast is on a distinguished road
Another option could be laser cutting of stainless. (or aluminum) For those of you in the PNW, we use..

Cutters Inc
3979 Hammer Drive, Bellingham, WA 98226-7630
(360) 647-1910 ‎

we e-mail them drawings and they send back parts cheaper than we can make them in our own shop. I don't know how they do it, but I'm sure glad I found 'em.

For example:

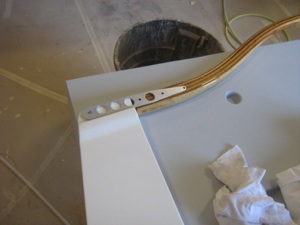

These tiller plates were $10 a pop, including material. And that was ordering just 4 of 'em. Not like we're buying hundreds to get the price down.

So if you need plates for this or that, it may be an option?

*****

Also, a trick for making fiberglass panels. We wax up a formica table, spray white gelcoat, then lay up the panel. When you are done you get a fiber panel with one side that looks -exactly- like white formica. This works really well if you are going to see the backing plate from inside the boat's cabin.

-jim lee

Last edited by LeftCoast; 11-14-2010 at 01:35 AM. Reason: 'Cause I felt like a change..
