  #21
Old 02-09-2012
FSMike's Avatar
Senior Member

Join Date: Jan 2010
Location: Bahamas
Posts: 620
Thanks: 1
Thanked 18 Times in 18 Posts
Rep Power: 6
FSMike is on a distinguished road
My jib bag zips over the head stay as well as the sail. That way the jib is always hanked on, the jib sheets are always attached, all you do is remove the bag, connect the halyard, unfold the jib along the deck, and hoist. To put it away at the end of the sail, pull it down with the downhaul, reverse the rest of the process, and you're done.
Makes singlehanding easy.
AdamLein and SloopJonB like this.
__________________
Sail Fast Live Slow
36' Solaris Sunstar catamaran
Reply With Quote Quick reply to this message Share with Facebook
  #22
Old 02-09-2012
Squidd's Avatar
Superior Sailor

Join Date: Sep 2011
Location: Eagle River Wi.
Posts: 975
Thanks: 6
Thanked 7 Times in 6 Posts
Rep Power: 4
Squidd is on a distinguished road
That's cool..I have a jib bag too...was one of my sewing/repair projects...

I replaced a broken zipper with Industrial Velcro...Takes two hands to rip it apart
__________________
"Might as well take 'er out...If anything is gonna happen...It's gonna happen out there..."
"Captin Ron"
Reply With Quote Quick reply to this message Share with Facebook
  #23
Old 02-10-2012
SloopJonB's Avatar
Senior Moment Member

Join Date: Jun 2011
Location: West Vancouver B.C.
Posts: 11,321
Thanks: 59
Thanked 65 Times in 62 Posts
Rep Power: 4
SloopJonB will become famous soon enough
Quote:
Originally Posted by bljones View Post
I'm thinking on a boat under 30' the loads are light enough not to matter.

On a cruising boat I don't see a need for two cabin top winches for sail raising, unlike Harken. Here's their suggested deck layout for a smallish cruising boat.:

The Harken rendering is optimal. Lines led back to the cockpit get a lot of friction added in. On my 1/4 Tonner everything came aft and both the Gennie and the Main had to be winched for the last 1/3 of the hoist. The halyards exited at the bottom of the mast so you couldn't "jump" them. Secondary winches in the cockpit of a boat under 30' are a luxury but I'd have two halyard winches for sure.
__________________
I, myself, personally intend to continue being outspoken and opinionated, intolerant of all fanatics, fools and ignoramuses, deeply suspicious of all those who have "found the answer" and on my bad days, downright rude.
Reply With Quote Quick reply to this message Share with Facebook
  #24
Old 02-10-2012
SloopJonB's Avatar
Senior Moment Member

Join Date: Jun 2011
Location: West Vancouver B.C.
Posts: 11,321
Thanks: 59
Thanked 65 Times in 62 Posts
Rep Power: 4
SloopJonB will become famous soon enough
Quote:
Originally Posted by Squidd View Post
Actually, what about a cam holding till I can tie off on a cleat...? Cleats I have...
How about mounting a CLAM cleat where you'd mount a clutch? If you set it at the right height, the line would slide through it as you winched in and then you could remove the line from the winch, just like with a clutch.

Should be strong enough for 30' and under. They only cost a few bucks too.
__________________
I, myself, personally intend to continue being outspoken and opinionated, intolerant of all fanatics, fools and ignoramuses, deeply suspicious of all those who have "found the answer" and on my bad days, downright rude.
Reply With Quote Quick reply to this message Share with Facebook
  #25
Old 02-10-2012
PaulinVictoria's Avatar
Remember you're a womble

Join Date: Aug 2009
Location: Sidney, BC
Posts: 2,081
Thanks: 10
Thanked 53 Times in 51 Posts
Rep Power: 6
PaulinVictoria is on a distinguished road
A clutch is the right way to go, cam cleats are just too easy to catch and ping the line out of, and before you know it, the sail is on the deck. Usually at the most inopportune moment of course.
__________________
Orange Crush
1974 C&C27 MkII

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message Share with Facebook
  #26
Old 02-10-2012
bljones's Avatar
Senior Member

Join Date: Oct 2008
Location: South Coast Ontario
Posts: 8,468
Thanks: 35
Thanked 89 Times in 80 Posts
Rep Power: 8
bljones has a spectacular aura about bljones has a spectacular aura about

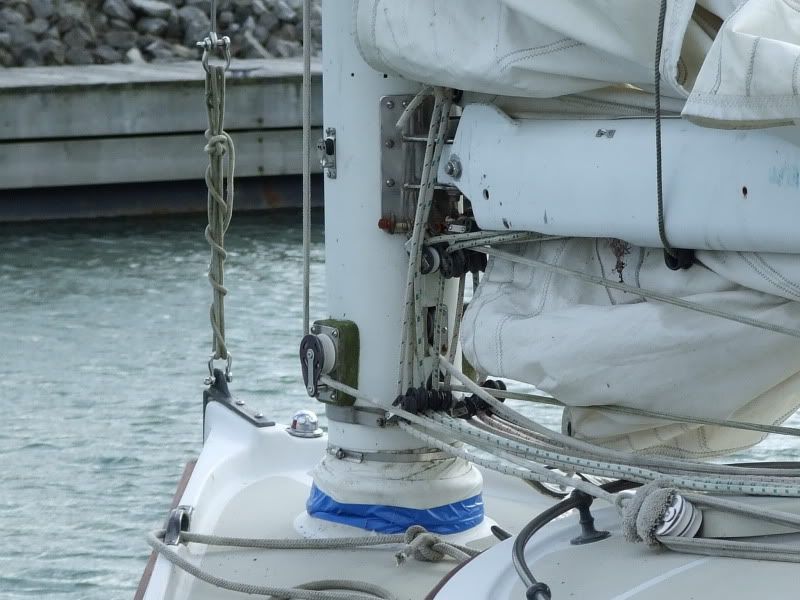

Of course, things can get kind of extreme:
Here's the clutch farm on a bluejacket 23, a catboat:




__________________
It's 5 o'clock somewhere:


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message Share with Facebook
  #27
Old 02-10-2012
bljones's Avatar
Senior Member

Join Date: Oct 2008
Location: South Coast Ontario
Posts: 8,468
Thanks: 35
Thanked 89 Times in 80 Posts
Rep Power: 8
bljones has a spectacular aura about bljones has a spectacular aura about
Quote:
Originally Posted by SloopJonB View Post
The Harken rendering is optimal. Lines led back to the cockpit get a lot of friction added in. On my 1/4 Tonner everything came aft and both the Gennie and the Main had to be winched for the last 1/3 of the hoist. The halyards exited at the bottom of the mast so you couldn't "jump" them. Secondary winches in the cockpit of a boat under 30' are a luxury but I'd have two halyard winches for sure.
I can appreciate that. I figure a deck organizer and a turning block are cheaper than a second halyard winch, and I like having my halyards run to one station. But, that two winch symmetry sure is purty.
__________________
It's 5 o'clock somewhere:


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message Share with Facebook
  #28
Old 02-10-2012
Squidd's Avatar
Superior Sailor

Join Date: Sep 2011
Location: Eagle River Wi.
Posts: 975
Thanks: 6
Thanked 7 Times in 6 Posts
Rep Power: 4
Squidd is on a distinguished road
Well, considering the boat has 34 years of use with just a line led to a winch and tied off on a cleat...(no cam, clam, or clutch) anything I add will be a bonus...

I think I will run the second halyard down and back to cockpit (parallel to first halyard)
I'll add a pair of cams, pre-winch, and then an additional cleat, post winch, to tie off on and back up the cam(s)...One longer halyard and I'm good to go...

Then down the line (time wise) I can add the clutchs, pre-cam, as cash flow allows....
__________________
"Might as well take 'er out...If anything is gonna happen...It's gonna happen out there..."
"Captin Ron"
Reply With Quote Quick reply to this message Share with Facebook
  #29
Old 08-25-2012
Junior Member

Join Date: Aug 2012
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 0
Robert Barnstaple is on a distinguished road
Re: Lines to Cockpit/Shareing the Load

Quote:
Originally Posted by bljones View Post
Of course, things can get kind of extreme:
Here's the clutch farm on a bluejacket 23, a catboat:




Very interested in the Bluejacket 23 MS. I've always wanted one. Any sellers out there?
Reply With Quote Quick reply to this message Share with Facebook
  #30
Old 08-27-2012
Barquito's Avatar
Barquito

Join Date: Dec 2007
Location: Madison, WI
Posts: 2,238
Thanks: 0
Thanked 26 Times in 26 Posts
Rep Power: 8
Barquito is on a distinguished road
Re: Lines to Cockpit/Shareing the Load

Robert -

Might want to pop that question onto a new thread. That one was a bit old. Cool looking boat. Good luck with your search.
__________________
Bristol 27
Cirque
Reply With Quote Quick reply to this message Share with Facebook
