Re: Exhaust waterline question?

I rememeber when you got her. Youve done a great job refinishing and bringing her back. Now shes part of the family, yours....and the C&C family. I also have enjoyed reading your progression sailing.

Dave


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
___________________________
S/V Haleakala (Hawaiian for" House of the Sun")
C&C 35 MKIII Hull # 76
Parkville, Maryland
(photos by Joe McCary)
Charter member of the Chesapeake Lion posse

Our blog-
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


“Sailing is just the bottom line, like adding up the score in bridge. My real interest is in the tremendous game of life.”- Dennis Conner
chef2sail is offline
Quote Quick Reply Share with Facebook
Sponsored Links
Advertisement

post #12 of 28 Old 11-06-2012
Senior Member

azguy's Avatar

Join Date: Jul 2012
Location: Scottsdale
Posts: 572
Thanks: 0
Thanked 17 Times in 17 Posts
Rep Power: 4

Re: Exhaust waterline question?

Those before and after pictures are amazing, congratulations to you for a job well done....I got a chuckle from the before bottom picture, pretty growthy...
azguy is offline
Quote Quick Reply Share with Facebook
post #13 of 28 Old 11-06-2012
Senior Member

BarryL's Avatar

Join Date: Aug 2003
Location: Long Island, NY
Posts: 1,826
Thanks: 4
Thanked 51 Times in 46 Posts
Rep Power: 13

Re: Exhaust waterline question?

Hey,

One point that has not been made: Make sure that the exhaust flange, where it exits the transom, is properly sealed. On my boat, I have problem where I was ending up with a significant amount of water in the bilge, but only after motoring. I thought it was the stuffing box, it wasn't. I thought I had a raw water intake leak, i didn't. Then I thought that the exhaust was leaking - it wasn't.

The flange that the transom, where the exhaust hose connected to, wasn't sealed. When the transom squatted under power, water was leaking in around the flange. I removed it and properly sealed it. No more water leaks.

Barry
chef2sail likes this.

Barry Lenoble
Deep Blue C, 2002 C&C 110
Mt. Sinai, NY

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BarryL is offline
Quote Quick Reply Share with Facebook
post #14 of 28 Old 11-06-2012 Thread Starter
First String

Join Date: Jan 2009
Location: South carolina
Posts: 861
Thanks: 45
Thanked 9 Times in 9 Posts
Rep Power: 7

Re: Exhaust waterline question?

Quote:
Originally Posted by BarryL View Post
Hey,

One point that has not been made: Make sure that the exhaust flange, where it exits the transom, is properly sealed. On my boat, I have problem where I was ending up with a significant amount of water in the bilge, but only after motoring. I thought it was the stuffing box, it wasn't. I thought I had a raw water intake leak, i didn't. Then I thought that the exhaust was leaking - it wasn't.

The flange that the transom, where the exhaust hose connected to, wasn't sealed. When the transom squatted under power, water was leaking in around the flange. I removed it and properly sealed it. No more water leaks.

Barry
I have a very water tight boat. The wet packing leaks maybe 6 or 7 drops a min at adle then a little more while the shaft is spinning. The flange in the back dont seam to be leaking at all.
ltgoshen is offline
Quote Quick Reply Share with Facebook
post #15 of 28 Old 11-06-2012
Senior Member

Join Date: Jan 2012
Location: British Columbia
Posts: 2,664
Thanks: 20
Thanked 40 Times in 38 Posts
Rep Power: 4

Re: Exhaust waterline question?

I deliberately send my exhaust below the waterline, as that eliminates the need for a muffler. I have a 1/4 inch anti siphon hole above the waterline. Some go down several feet with no problem.

Brent Swain, Boat designer, Builder, and author of "Origami Metal Boatbuilding"
Brent Swain is offline
Quote Quick Reply Share with Facebook
post #16 of 28 Old 11-06-2012 Thread Starter
First String

Join Date: Jan 2009
Location: South carolina
Posts: 861
Thanks: 45
Thanked 9 Times in 9 Posts
Rep Power: 7

Re: Exhaust waterline question?

Quote:
Originally Posted by Brent Swain View Post
I deliberately send my exhaust below the waterline, as that eliminates the need for a muffler.
How do you know if your impeller stops pumping water if you cant see it spitting?
ltgoshen is offline
Quote Quick Reply Share with Facebook
post #17 of 28 Old 11-07-2012
Senior Member

trantor12020's Avatar

Join Date: Mar 2006
Location: Singapore
Posts: 701
Thanks: 4
Thanked 10 Times in 10 Posts
Rep Power: 10

Re: Exhaust waterline question?

Quote:
Originally Posted by ltgoshen View Post
How do you know if your impeller stops pumping water if you cant see it spitting?
When temp alarm comes on.

Ken
2002 Hunter 326, SV Millennium 2
1999 Macgregor 26X, SV Millennium
trantor12020 is offline
Quote Quick Reply Share with Facebook
post #18 of 28 Old 11-08-2012 Thread Starter
First String

Join Date: Jan 2009
Location: South carolina
Posts: 861
Thanks: 45
Thanked 9 Times in 9 Posts
Rep Power: 7

Re: Exhaust waterline question?

Being new at this, I have made it a habbit of looking over the stern rail looking for the water to be spitting out the back once I fire up the yanmar. It's kind of scarry to wate on an alarm before you know. I dont want to hurt the engine.
Thanks for the help.
ltgoshen is offline
Quote Quick Reply Share with Facebook
post #19 of 28 Old 11-08-2012
Junior member, rest old

msmith10's Avatar

Join Date: Feb 2009
Location: Columbus Ohio
Posts: 497
Thanks: 3
Thanked 0 Times in 0 Posts
Rep Power: 7

Re: Exhaust waterline question?

You're right to do check for water flow every time you start the engine. I suspect that the alarm comment was a bit of sarcasm. Most A4s don't have alarms installed, although they're a good idea as they'll also warn you about low oil pressure. The most common mistake I make when starting (always while sailing, not leaving the dock) is to leave the choke closed. After a few minutes I notice the engine is running very rough. It then takes a while to burn the fouling off once I open the choke. I need to install some kind of "choke alarm."
I noticed you said that your stuffing box leaks at idle. Is this all the time, even when the engine is off? If so, the packing nut probably needs to be tightened a little bit. The short version is, it should not leak when the shaft is not turning but should drip a little when the shaft is turning. If the packing nut is too loose, it will leak at idle. If it's too tight, it will overheat and the packing may be so tight that it scores the prop shaft, making it impossible to get a good seal in the future.

Mark Smith
1977 C&C 30 Mk 1 hailing from Port Clinton, Ohio
msmith10 is offline
Quote Quick Reply Share with Facebook
post #20 of 28 Old 11-08-2012 Thread Starter
First String

Join Date: Jan 2009
Location: South carolina
Posts: 861
Thanks: 45
Thanked 9 Times in 9 Posts
Rep Power: 7

Re: Exhaust waterline question?

Quote:
Originally Posted by msmith10 View Post
You're right to do check for water flow every time you start the engine. I suspect that the alarm comment was a bit of sarcasm. Most A4s don't have alarms installed, although they're a good idea as they'll also warn you about low oil pressure. The most common mistake I make when starting (always while sailing, not leaving the dock) is to leave the choke closed. After a few minutes I notice the engine is running very rough. It then takes a while to burn the fouling off once I open the choke. I need to install some kind of "choke alarm."
I noticed you said that your stuffing box leaks at idle. Is this all the time, even when the engine is off? If so, the packing nut probably needs to be tightened a little bit. The short version is, it should not leak when the shaft is not turning but should drip a little when the shaft is turning. If the packing nut is too loose, it will leak at idle. If it's too tight, it will overheat and the packing may be so tight that it scores the prop shaft, making it impossible to get a good seal in the future.


Well it drips with the engine running in netrual maybe 5 or 7 drops a min. Cant tell when in gear but its not too much. Should it be tighten up?

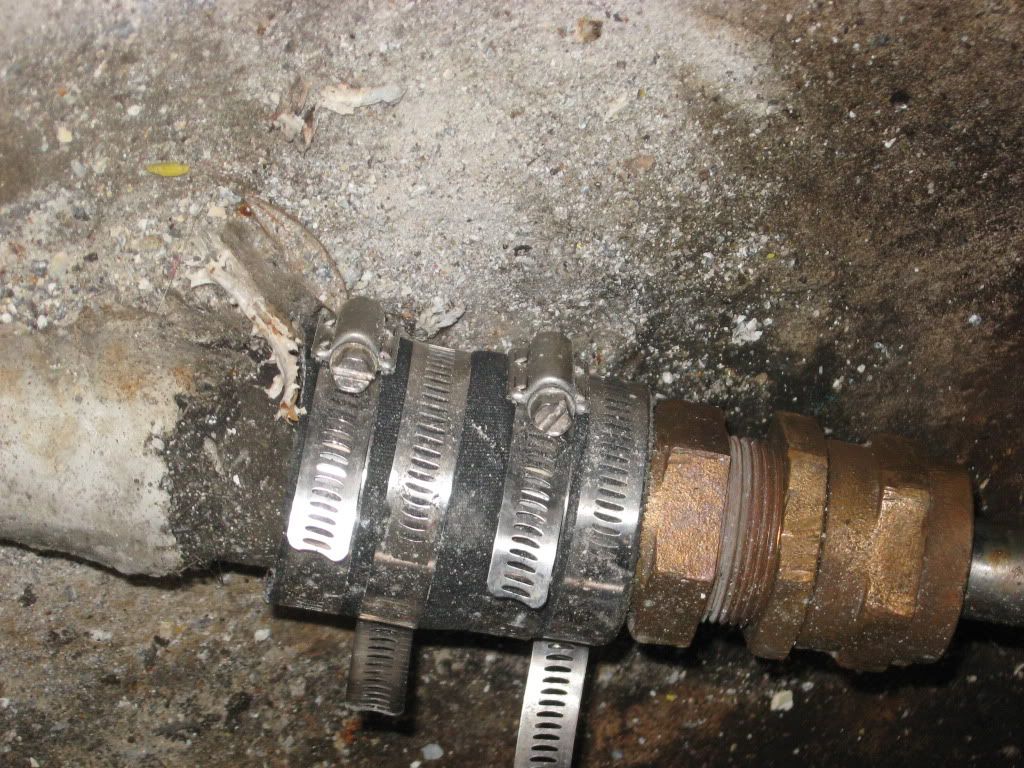

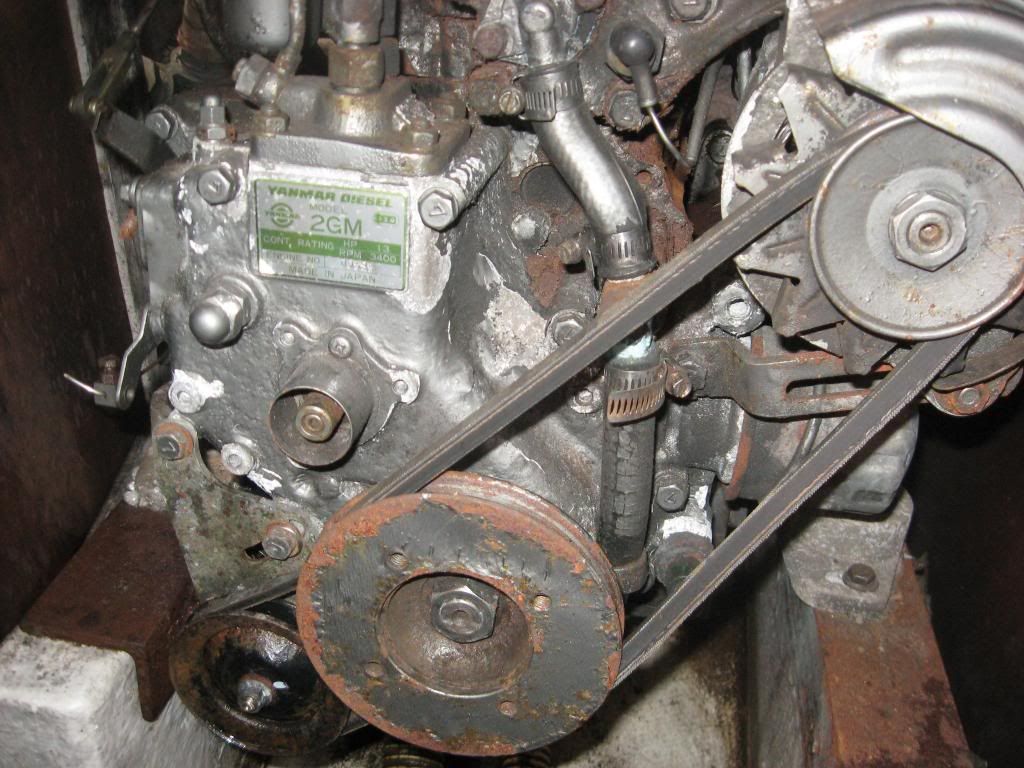

My engain is a 2gm Yanmar 13 hp. it has no choke on it. It starts up with the greatest of ease. No-choking a diesel right? Here is the packing I just had it repacked at Marsh harbor boat works.
[/IMG]

[/IMG]
