Running backstay specifications advice

My Bristol 45.5 does not have tackles to tighten up the runners -rather a tail is taken through a turning block to a winch. The lead for this is not as fair as it might be and it takes up a winch, so I am thinking about changing to tackles for this. I was wondering what strength of blocks would be needed to make up a more conventional tackle (4:1?). I would use a low stretch line of some sort, should I go to something fairly high-tech or stick to a high-end dacron?

Thanks for any suggestions.
killarney_sailor is offline
Quote Quick Reply Share with Facebook
Sponsored Links
Advertisement

post #2 of 15 Old 01-30-2008
Senior Member

sailboy21's Avatar

Join Date: Apr 2006
Location: SE Alaska
Posts: 722
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 10

Are the runners synthetic or wire? I wouldn't go with a tackle, too much $$$ (about $300 or much more per runner??) and deck clutter IMO. If you do, get the highest rated you can, check product recalls, and avoid snap shackles. You can't get something that is TOO strong. 45' is going to have significant loads, so it may be worthwhile to talk to a professional rigger. Sail Safe!

Last edited by sailboy21; 01-30-2008 at 03:47 PM.
sailboy21 is offline
Quote Quick Reply Share with Facebook
post #3 of 15 Old 01-30-2008
░░░░░░░░░░

hellosailor's Avatar

Join Date: Apr 2006
Posts: 11,818
Thanks: 6
Thanked 147 Times in 144 Posts
Rep Power: 11

Killarney, I'd call or email Harken or Garhauer and get some professional opinions. Harken has calculators and knows formulas for loads, Garhauer has a rep for personal service at a lower price, if both give you the same specs you can probably figure they are correct.
hellosailor is offline
Quote Quick Reply Share with Facebook
post #4 of 15 Old 01-30-2008
.

Join Date: Nov 2006
Posts: 10,851
Thanks: 0
Thanked 5 Times in 2 Posts
Rep Power: 14

What's your sail area?
Giulietta is offline
Quote Quick Reply Share with Facebook
post #5 of 15 Old 01-30-2008
Sailor

Plumper's Avatar

Join Date: Nov 2007
Location: Vancouver Island
Posts: 845
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 9

Are these check stays for sail shape or do they back an inner forestay and staysail?

Gaz

There is a tide in the affairs of men,
Which, taken at the flood, leads on to fortune;
Omitted, all the voyage of their life
Is bound in shallows and in miseries.
Shakespeare, Julius Caesar IV, iii, 217
Plumper is offline
Quote Quick Reply Share with Facebook
post #6 of 15 Old 01-30-2008
Moderator

Jeff_H's Avatar

Join Date: Feb 2000
Location: Annapolis, Md
Posts: 7,053
Thanks: 6
Thanked 181 Times in 147 Posts
Rep Power: 10

I would look at reworking the lead so that it has a fair lead to the winch and adding sheet stoppers on each side to free up the winch. My backstay is a 32:1 cascade. You really don't want to do that.

Jeff
Jeff_H is offline
Quote Quick Reply Share with Facebook
post #7 of 15 Old 02-01-2008 Thread Starter
Bristol 45.5 - AiniA

Join Date: May 2006
Posts: 4,190
Thanks: 5
Thanked 108 Times in 96 Posts
Rep Power: 10

these are for support of an inner forestay

Quote:
Originally Posted by Plumper View Post
Are these check stays for sail shape or do they back an inner forestay and staysail?

Gaz
The runners support an inner stay that might have a staysail or storm jib on it. I am looking for something that could be tightened up and released fairly quickly and moved forward when not needed.

Bruce
killarney_sailor is offline
Quote Quick Reply Share with Facebook
post #8 of 15 Old 02-01-2008
Sailor

Plumper's Avatar

Join Date: Nov 2007
Location: Vancouver Island
Posts: 845
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 9

That is the setup I have on my boat. Originally the runners ran back to the winches but didn't like it because it took a winch so I put in two tackles sized about the same as my vang. I am not sure they are big enough though. I don't think the mast would come down if one broke but I would not be able to point very well under just the stay sail without the runners. They are not original. The mast was designed without them but the previous owner thought it pumped too much. I had the rig completely retuned after I bought it and I don't get any pump. I think he just had everything too loose. The runners are good insurance though.

There is a tide in the affairs of men,
Which, taken at the flood, leads on to fortune;
Omitted, all the voyage of their life
Is bound in shallows and in miseries.
Shakespeare, Julius Caesar IV, iii, 217
Plumper is offline
Quote Quick Reply Share with Facebook
post #9 of 15 Old 02-02-2008
Senior Member

sailboy21's Avatar

Join Date: Apr 2006
Location: SE Alaska
Posts: 722
Thanks: 0
Thanked 0 Times in 0 Posts
Rep Power: 10

Retractable runners

Here is the setup I found to work extremely well, simple and inexpensive. This setup is straight out of "Riggers Apprentice" by Brian Toss. Admittedly, this is for a removable inner stay on a sloop, but I don't see why it can't be used for a cutter. I used 1/4" Amsteel which has 8280lbs breaking strength (which exceeds most of the hardware used). The basic setup is Amsteel runner led to a turning block and then to a secondary cockpit winch. I spiced a cover on the tail for ease of handling. Midway on the runner is a light weight block with a length of bungee attached. The bungee runs to a turning block on the rail, and then up to the spreaders where it is anchored. It doesn't matter where the bungee goes, just that it has enough strength to retract the runner down to the rail. Since it is not in use most of the time, I tie the runner and bungee to the rail and aft lower shroud with wool yarn when not in use. This keeps a tidy deck, and allows for immediate deployment. I only use the runners when a storm jib on the inner stay is set, so for day sailing and sitting in the slip I climb the rig and remove them to save UV degradation, however the cost of replacing them every few years is negligible. A tapered eyespice and a cover spice with 12-strand is amazingly simple, so I consider this an end user serviceable system. Not so with wire unless you use mechanical terminals.

Bungee and amsteel (before cover splice):

Bungee and termination at spreader (runner also visible)

Rail turning block and wool ties:

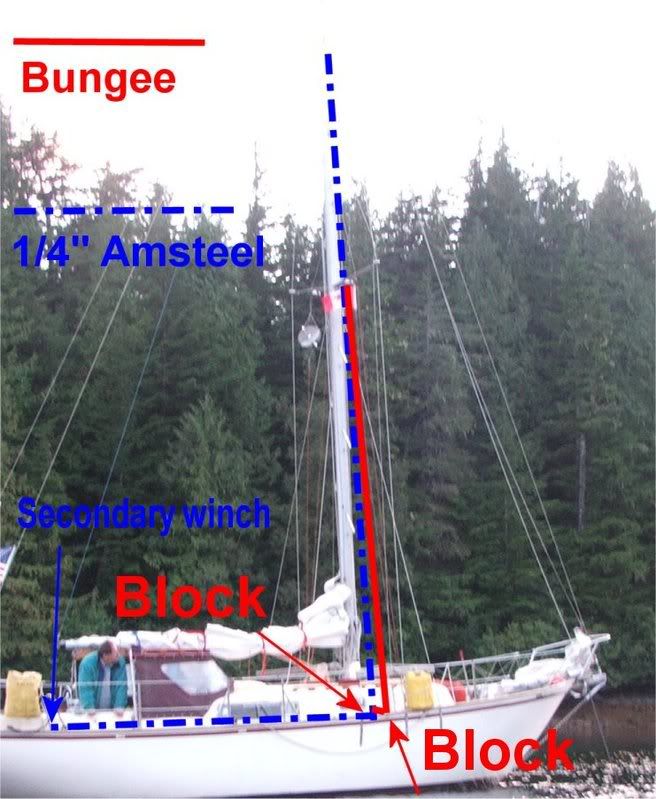

Overview:

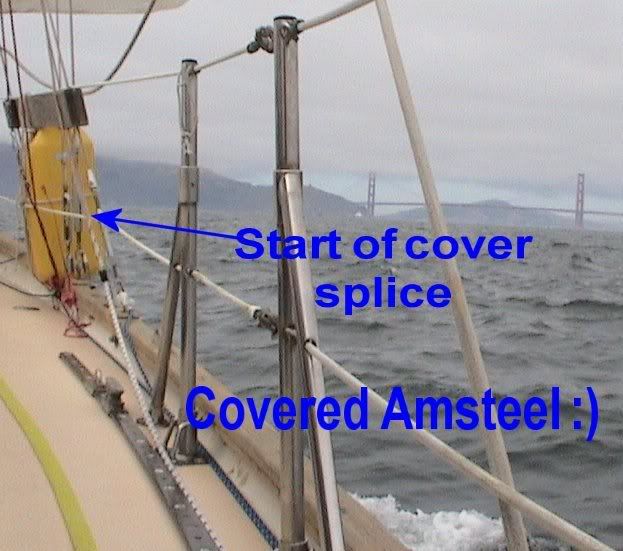

Result of splicing a Sta-Set (New England) cover onto Amsteel (Samson):
You can clearly see the "flying" block used to retract the runner. I used Harken Carbo Air blocks for their light weight, low cost, and synthetic cheek. Getting hit with glass filled nylon causes less pain than steel or aluminum.

And on my (And S/V Seaya's) way to #1 of 2 times going under the Golden Gate

Last edited by sailboy21; 02-02-2008 at 02:54 AM.
sailboy21 is offline
Quote Quick Reply Share with Facebook
post #10 of 15 Old 02-04-2008 Thread Starter
Bristol 45.5 - AiniA

Join Date: May 2006
Posts: 4,190
Thanks: 5
Thanked 108 Times in 96 Posts
Rep Power: 10

Thanks for the useful suggestions

Certainly goes to show that there more than few ways to skin any cat (or cutter).
